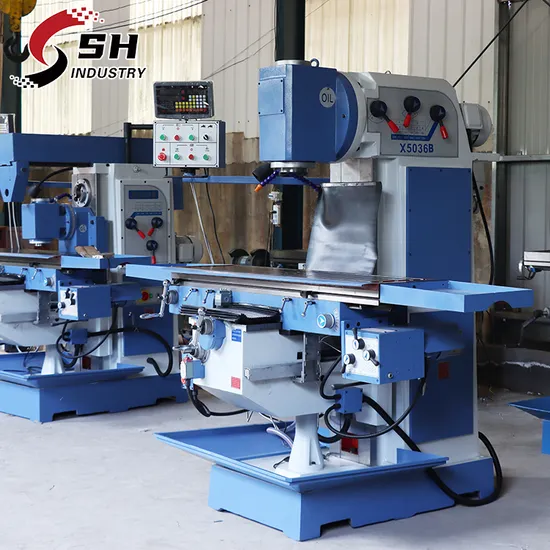

Chinese Manual Milling Machine X5036 Cheap Knee Type Vertical Milling Machine

Product Description

Chinese Manual Milling Machine X5036 Cheap Knee Type Vertical Milling Machine
Product Description
X5036 technical parameter:

Specifications	X5036A	X5036B	X5036C
Spindle taper	7:24 ISO50	7:24 ISO50	7:24 ISO50
Distance between spindle nose and table (mm)	80-440	70-450	70-450
Distance between spindle hole center and column surface	320	360	360
Spindle speed (r/min)	60-1700 (12steps)	60-1700 (12steps)	60-1800 (12steps)
Rotation angle of end milling head	±45°	±45°	±45°
Table size (mm)	1250×360	1500×360	1600×360
Table travel (X/Y/Z) (mm)	600/320/380	1000/320/380	1300/320/380
Number/width/spacing of T-grooves in worktable (mm)	3/18/80	3/18/80	3/18/80
Main motor (kw)	4	4	5.5
Power of Maneuverable Feed Motor of Workbench (kw)	0.75	0.75	0.75
Power of feed motor for lifting platform (kw)	1.1	1.1	1.1
Cooling pump motor power (kw)	0.09	0.09	0.09
Cooling pump flow rate (L/min)	25	25	25
weight (kg)	2200	2230	2600
overall dimension (mm)	1700×1680×1880	2220×1790×1980	2520×1890×2080

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
