US$15,000.00-22,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Machinery & Hardware, Construction, Stone Industry
Cutting Ability
High Speed
Keywords
Bridge Saw CNC Stone Cutting Machine
Working Area
3000*2000*350mm
Driving Motor
Servo Brand
Repositioning Accuracy
0.05mm
Control System
Special CNC Control System
Transmission
X/Y Rack and Pinion, Z Ball Screw
Spindle
Water Cooling Spindle and Cutters
Key Selling Points
High-Accuracy
Transport Package
Plywood Case
Specification
3000*2000*350mm
Product Description
Product introduction

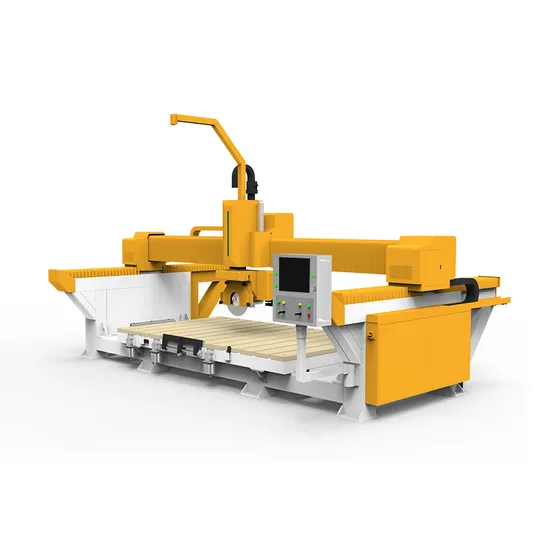

The Intelligent 4+1 bridge cutter is a fully functional processing equipment with a 360 degree rotation of the head. Saw blade with spindle can be cut, chamfering, digging and other multi-functional integration, intelligent operating system, simple and easy to learn; High quality motor, high precision, fast speed; Transverse, longitudinal, arc, circular, arbitrary Angle, shape cutting. The machine head can move and rotate freely. In addition to cutting modeling, it can also be used for large plate opening, 45 degree chamfering, opening basin hole, stove hole, oblique line cutting.
Suitable for quartzite, rock plate, artificial stone, granite, marble all kinds of large and small stone decoration engineering stone processing machinery. Save plate save time save worry save effort!
Technical
indicators | parameter |
| | Configuration 1 | Configuration 2 |
| Model | iGS-B3220 | iGS-B3320 |
| Control system | WEIHONG + WEIHONG motor | Cutcam+VEICHI motor |
| Spindle | 4.5kwWater cooling |
| Optional power | 15kw/18.5kw/22kw |
| Saw blade diameter | 350/400mm | 350/400/450mm |
| Lathe bed | Heavy duty welded bed |
| Table | Flip table |
| Gantry | Steel structure |
| Rack | High density diagonal rack |
| Guide rail | 30 guide rail |
| Input power | 3 . 380V/220V 50-60Hz 10A |
| Standard function | Handle; Rely on the ruler; | A hand wheel; Balancing cylinder; Rely on the ruler; blanking |
| Optional function | Motor power;Spindle power;Shift, Dust-free mounting measurement software | Motor power;Spindle power;Camera, Shift, Dust-free mounting measurement software |
>>
