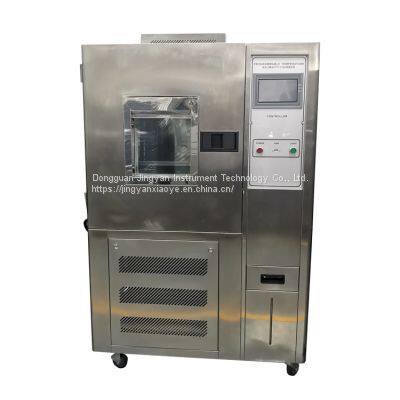

This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Model
| JY-80L
| JY-150L
| JY-225L
| JY-408L
| JY-800L
|
Inner Size
W×H×D(cm)
| 40×50×40
| 50×60×50
| 50×75×60
| 60×85×80
| 100×100×80
|
Outside Size
W×H×D(cm)
| 93×155×95
| 100×148×106
| 117×166×91
| 140×176×101
| 170×186×111
|
Volume (V)
| 80 L
| 150L
| 225L
| 408L
| 800L
|
Temp and Hum Range
| A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C
RH20%-98%
|
Function
| Fluctuation
| ±0.5°C ±2.5%RH
|
Deviation
| ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
|
Controller
Analytical
Accuracy
|
±0.3°C ±2.5%RH
|
Wind Cycling Way
| Centrifugal fan-broadband type forced air circulation
|
Refrigeration Way
| Single stage compression refrigeration
|
Refrigerator
| French Tecumseh
|
Refrigerants
| R4O4A USA DuPont environmental protection refrigerant(R23+R404)
|
Condensing Way
| Air-cooled or water-cooled
|
Water Supplying Way
| Automatic cycling water supply
|
Safety device
| Non- fuse-switch(compressor overload,
refrigerant high low voltage,
over-humidity and temperature protection,
Protection switch,fuse stoppage warning system
|
