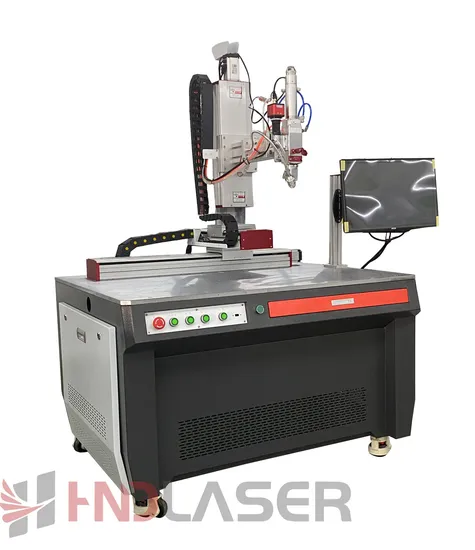

Best Quality CNC Control Platform Automatic Laser Welding Machine for Metal Aluminum

Product Description

Experience the ultimate in laser welding with our SGS-certified machine, a testament to our commitment to quality and excellence.
(Tailored solutions to meet your unique requirements)

Step into a realm of unmatched assurance with our high-power laser welding machine, gloriously endorsed by the prestigious SGS certification. This hallmark of excellence guarantees our equipment's superior mechanical performance, while rigorously adhering to global safety and stability standards. For discerning business owners, dedicated managers, and skilled operators, this is more than just a certification-it's a steadfast promise of exceptional reliability and unwavering safety, ensuring flawless operation and absolute peace of mind with every use.

Product Description
Main Features

The NAW series can be equipped with an optional 4-axis/6-axis professional welding controller, which is conveniently programmed schematically. Equipped with professional custom welding head, imported material lens, stable and durable.

Power	Material	Stainless steel	Carbon steel	Galvanized sheet	Aluminum
1000W	Max. welding thickness	2.5mm	2.5mm	2.5mm	2.5mm
1500W		3mm	3mm	3mm	2.5mm
2000W		5mm	5mm	5mm	4mm
3000W		7mm	7mm	7mm	5mm
6000W		10mm	10mm	10mm	8mm
	100% penetration with one-sided welding

Advantages & Accessories
3 in 1 laser gun/torch Automatic wire feeding machine Multi-language operating system
Ultra-high integration Triple safety interlocks Compact package

Replacement (parts)	Quantity
laser source	1
Hanli chiller	1
Wobble welding head	1
CCD vision system	1
Slider X=700 , Y=300 , Z=300mm	1
Auto wirefeeder	1
PC and display	1
Leadshine servo	1
Syntec control software	1
Rotary + Auxiliary rotary	1
Meanwell power supply	1

Parameter

NO.	Project	Parameter
1	Model number	NAW
2	Laser power	1000W/1500W/2000W/3000W/6000W
3	Laser level	Class IV (IEC 60825-1)
4	Laser type	CW Fiber Laser
5	Slider length	X=700 , Y=300 , Z=300mm
6	Motion	Servo motor
7	Control system	SYNTEC
8	Length of Fiber optic	10m
9	Welding head	High precision double wobble head (Default)
10	Cooling system	Hanli/CW chiller
11	Vision system	CCD monitoring system (Default)
12	Language	More than 20 languages
13	Temperature	0-45ºC
14	Power consumption	6kw / 8kw / 10kw / 13kw / 20kw (Max)
15	Electrical requirement	L/N/PE 100 - 380 VAC, 50/60 Hz

Materials		Reaction
Metal	Stainless steel	√√
	Aluminum	√
	Anodized aluminum	√√
	Brass	√
	Nickel alloy	√√
	Copper	√
	Galvanized steel	√
	Gold, silver, nickel, platinum	√√
	Carbon steel	√√
	Titanium	√√
	Gold	√

Excellent Reaction: √√ Good reaction: √ Poor reaction: - Application Focus on Exhibitions/Fairs
Plants/Teams
Certification Display
Endorsed by a renowned third party, we extend a comprehensive machine warranty service. Our dedicated team stands ready to support any inquiries or needs you may have.
Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO.,LTD
HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise supported by HNDLaser in Zhangjiagang. We are experts in the research, development, production, and application of state-of-the-art laser equipment, proudly encompassing Zhangjiagang HND Intelligent Equipment Co. and other illustrious enterprises.
With steadfast and substantial annual R&D investments, our products have garnered widespread market recognition, ensuring consistent production across the laser industrial spectrum. HNDLaser is deeply anchored in the philosophy of people-oriented innovation, driven by scientific and technological progress. Our relentless focus on innovation and talent cultivation serves as the cornerstone for expanding our market presence and enhancing product recognition continuously.
FAQ
Q1: What about the warranty period?
A1: Rest assured, if any challenges arise with the main components of the machine (excluding consumables) during the warranty period, we will swiftly replace or repair them at no additional cost to you.
Q2: I'm uncertain about the perfect model for my application. Could you assist in making the right choice?
A2: Of course! To provide you with the best guidance possible, kindly share this information:
(1) The specific type of material you intend to work with.
(2) The thickness specifications of the material in question.
(3) The size you envision for the weld seam.
Q3: Could you elaborate on your payment terms?
A3: We offer a variety of flexible payment methods including TT, Western Union, PayPal, LC, and even Cash, ensuring convenience for you.
Q4: Does your company provide CE certification along with other necessary clearance documentation?
A4: Certainly, we possess all the necessary original documentation. After shipping, we will promptly provide the CE document, a detailed packing list, commercial invoice, and the sales contract to ensure smooth customs clearance.
Q5: What steps should I take if I'm not familiar with the machine's operation or face issues post-receipt?
A5: Rest assured, we supply a comprehensive user manual accompanied by detailed images and a USB disk to guide you methodically, and offer monthly updates keeping you abreast of any enhancements.
Q6: What is the procedure to obtain a sample and verify the quality and results of your product?
A6: Simply dispatch your sample to us, and we will gladly perform a complimentary test to demonstrate our product's efficacy.
Q7: How quickly can I expect a quotation after making an inquiry?
A7: Your inquiry will be treated with utmost professionalism and answered with precision and care within an impressive timeframe of 12 hours.

---
