Multi Type Soft Forming Edge Banding Machine Woodworking Machine for Cabinet Furniture

Product Description

ZD880S
Product Parameters

Overall dimensions	8890x1140x1850mm
Weight	3800kg
Power	48.2kw
Working pressure	0.6~0.8Mpa
Dust collection outlet	Ф100mm*6
Panel thickness	18-22mm
Panel width	>=150mm
Panel length	>=300mm
Edge banding thickness	0.55~0.75mm
Edge banding width	J: 58mm ; C: 36mm X: 30-40mm
Feeding speed	6-8 M/min

If you use our machine, you can achieve the following functions:

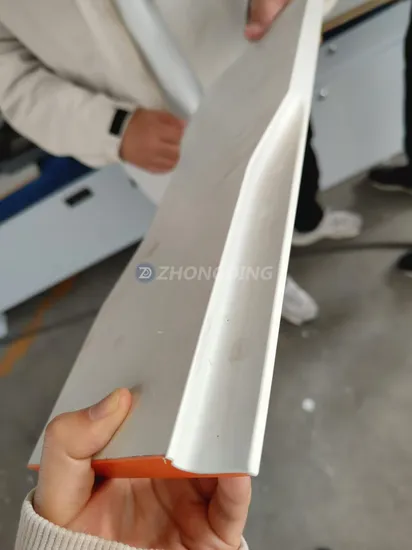

1.Symmetrically edge banding with perfect round corners.
2.Invisible glue lines. 3.Clean surface with smoothly edge trimming.
ZD450 series & ZD300~800 series edge banding machine available in a variety of configurations optional to meet your different productions requirements:

Our Advantages
Our edge banding machine use high quality accessories with the latest design.
1.Band clamping patent, perfectly preventing the bands from moving off its track.
2.Board preheating to get a better gluing effect.
3.Nonstick material glue pot, easy to clean without residue. 4.Dust proof plate setting all along the whole edge banding process can prevent the board from dirt.
5.Auxiliary pinch roller for narrow boards. Stable edge banding even for 4cm width panel.
6.The use of six-edges knife for fine trimming leads to a smoother cutting surface. With the design of linear guideway, it can stably working without abrasion. Also not easy to get stuck. 7.Band clamping by pneumatic control on fine trimming and scraping processes without manual adjusting.
8.Scrapping process with dust collecting pipe.
Company Profile
Our products are mainly included Precise panel saw, Edge Banding Machine, Multiple Drilling Machine, Press machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia.
We have established complete sales system. Our company takes the principle of quality frist and customer foremost, and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
Packaging & Shipping
After Sales Service
Relative Products
You can click on the image or product name to jump to the related product.
1.CNC Beam Saw
2.Sliding Table Saw
3.Automatic High Speed Edge Banding Machine
We can provide all woodworking machinery, please click on my home page for details, or contact me directly.

---
