Qt4-20 Easy Operated Automatic Concrete Hollow Block Machine with Hydraulic System in Malawi

Product Description

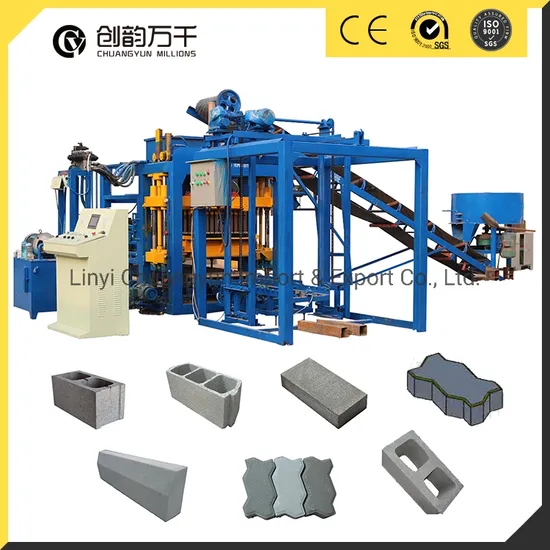

QT4-20 easy operated automatic concrete hollow block machine with hydraulic system in Malawi
Product Description
Main Advantages of QT4-20 hydraulic cement automatic block making machine taiwan
1) Host machine total 5.5T,every part all use thicken plate, make the machine strong and wear-resisting.
2) Fully automatic ,very easy operated by workers, greatly reduce the labor-cost.
3) Japan Mitsubishi PLC control system, ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
4) Hydraulic system, three-stage pressure control valve are adopted. so the pressure for all actions of the machine can be adjusted automatic.
5) Direct chain transmission, to sure very low noise, and easy to check the fault.
6) Mould vibration and head pressure together, make the brick high strength and density.
7) All the mold are carburizing by heat treatment, can using more than 120,000 times.
Technical specification

Dimension of host machine		4300*1850 *2600mm
Pallet size		1010*550*30mm
Total power		27.5kw
Weight of the host machine		5.5T
Vibration force		80KN
Molding cycle		15s
Intensity of pressure		9-10Mpa
Mixer		JS500
Raw Materials		Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, ganaue, gravel, perlite and other industrial wastes.
Applied Products		Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass block, slope blocks, interlocking blocks, etc.
Applied fields		Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

Chuangyun QT4-20 block machine in Tanzania production scene


Why Choose us?
1.Rich experience:
Factory with 20 years experience. Machines have been well proved for good use.
2.Reliability:
We are reputable and large manufacturers of brick machine with numerous certifications guarantee the quality of our machine. No smuggled goods.
3.Competitive price:
Factory supply directly,not trading company,much competitive price,lower more than30% than other company.
4.Perfect after service:
Engineer overseas door-to door service.24 hours online.All the machine one year warranty,technical support by free.
5. Assured machine quality:
1) Host machine total 5.5T,every part all use thicken plate, make the machine strong and wear-resisting.
2) Fully automatic ,very easy operated by workers, greatly reduce the labor-cost.
3) Japan Mitsubishi PLC control system, ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
4) Hydraulic system, three-stage pressure control valve are adopted. so the pressure for all actions of the machine can be adjusted automatic.
5) Direct chain transmission, to sure very low noise, and easy to check the fault.
6) Mould vibration and head pressure together, make the brick high strength and density.
7) All the mold are carburizing by heat treatment, can using more than 120,000 times.

---
