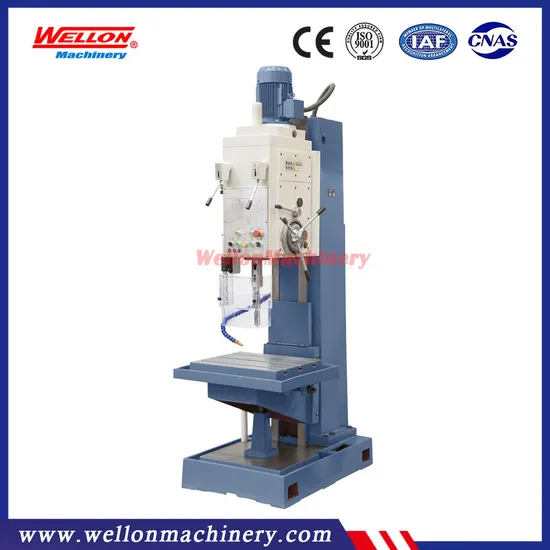

Square Column Vertical Drilling Machine Z5150B Vertical Drill Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking,
spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind
and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls
good looking appearance, easy maintenance and operation.
Technical parameter:

Model	Z5150B
Max drilling dia (mm)	50
Max tapping dia (mm)	M42
Spindle torque (Nm)	350
Spindle taper (mm)	MT5
Spindle travel (mm)	250
Spindle box travel by manual (mm)	200
Spindle speed steps (mm)	12
Spindle speed range (mm)	31.5-1400
Spindle feed steps (mm)	9
Table size spindle feed range (mm)	0.056-1.80
Table size (mm)	560x480
Table vertical travel (mm)	300
Max distance from spindle to table (mm)	750
Distance from spindle to column(mm)	335
Main motor power (kw)	3
Overall size (mm)	1090x905x2465
Net Weight (kg)	1270

Standard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Wrenches
Optional accessories:
Machine vise
Spindle guard
Depth indicator
Company Profile
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center
,Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
