Home Built CNC Metal Sheet Coil Cutting and Slitting Machine Uncoil Cutting and Slitting Line

Product Description

Description:
Home built CNC metal sheet coil cutting and slitting machine uncoil cutting and slitting line
FEATRURES
High degree of automation, high shearing accuracy and fast running speed
Specification:
1. Coil parameter

1	/Matierial	Tinplate, TFS, GS
2	/Thinkness	0.16-0.4 mm (os≤300Mpa,ob≤300Mpa)
3	/Width	500-1000mm
4	/Coilinside diameter	Φ508mm
5	/Coilousiade diameter	≤Φ1600mm
6	/Coil weight	Max10T

2.Sheet parameter

1	/Coating	Double side(Once)
2	/Oven Temperature	180-220ºC
3	/Running Control	Automatic

3.Machine parameter

1	/Products width	40-1000mm
2	/Slitting pics	2-20pics
3	/Width precision	±0.05mm
4	/Straightness	0.5mm/1000mm(W≥100mm)
5	/Burr	5% Thinkness,Min0.03mm
6	/Decoil inner diameter	Φ510mm

4. Description

1	/Speed	0-50m/min
2	/Power	125KW
3	/Direction	/By buyer
4	( Size)	40mx5m(L*W)
5	/Source	AC 3×380V10%,60Hz±2%
6	/Compressed air	0.4-0.8Mpa, 1000L/min
7	N46/Hydraulic oil	500L/By buyer
8	/Color	/By buyer

9

Gas

LPG or LNG, 30-40kg/hour

Description:

1	/Uncoiler	1set	AC2.2KW	Hydraulic
2	/Coil carr	1set	AC0.75KW	Hydraulic
1	/Roller Feeder	1Set	AC3.7KW
2	/Joint Machine	1Set	AC5.5KW
3	/EPC machine	2Set
4	/Tension Machine	3set	AC15KW	Inventor control
5	/Washing part	1set	AC15KW
6	/Oven for washing and passivion	1set	AC7.5KW
7	/Passivation Coater	1set	AC 2.2KW*4	Inventor control
8	/Coater(Double side)	1set	AC1.5KW*4	Inventor control
9	/Oven	1set	AC11KW*2,AC2.2KW*4	LNG
10	/EDC device	1set
11	/Slitting machine	1set	AC7.5KW	Inventor control
12	,/Tension machine for slitting with guider roller and pre-separation	1set		Hydraulic
13	/Decoiler	1set	AC37KW	Inventor control
14	/ lift platform	2set		Air up-down
15	/Plate car	1set	AC0.75KW	Out-in by motor on the track
16	/Hydraulic pressure station	2set	AC2.2KW,AC1.5KW
17	/Control system	1set	PLC:Simens S7-200 Touch screen:Winview Inventor: Wiscontrol	PLC control

ITEMS
lead time:150-180 days
export port:shanghai port
guarantee:shanghai qiangda is reponsible for the installation, adjustment and technical instructions. but the buyer should bear all related fees, such as visa, transportation, accommodation fee and a daily salary of USD100/person.
warranty period:one year.

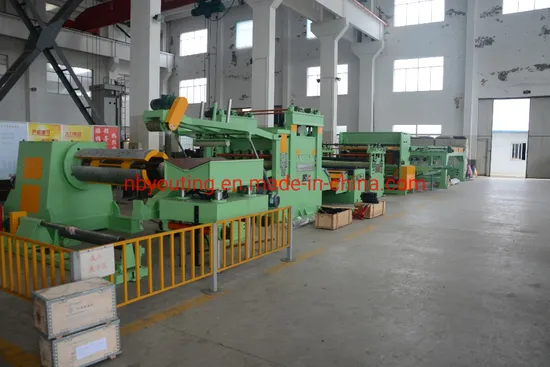

PICTURES
Parameters

Qiangda120
Model	Sheet Thickness(mm)	Width(mm)	No. of Slitting	Tolerance	Speed	Coil Weight(T) max
120-1x650	0.2-1	150-650	30-8	±0.05	0-120	3,5
120-1x850	0.2-1	300-850	30-8	±0.05	0-120	5,10
120-1x1050	0.2-1	300-050	30-8	±0.05	0-120	5,10
120-1x1300	0.2-1	400-1300	30-8	±0.05	0-120	10,15
120-2x650	0.3-2	150-650	30-8	±0.05	0-120	3,5
120-2x850	0.3-2	300-850	30-8	±0.05	0-120	5,10
120-2x1050	0.3-2	300-1050	30-8	±0.05	0-120	5,10
120-2x1300	0.3-2	400-1300	30-8	±0.05	0-120	10,15
120-2x1600	0.3-2	400-1600	30-8	±0.05	0-120	15,20
120-2x2000	0.3-2	500-2000	30-8	±0.05	0-120	15,20
120-3x1300	0.4-3	400-1300	30-6	±0.05	0-120	10,15
120-3x1600	0.4-3	400-1600	30-6	±0.05	0-120	15,20
120-3x2000	0.4-3	500-2000	30-6	±0.05	0-120	15,20
120-4x1300	0.5-4	400-1300	30-6	±0.05	0-120	10,15
120-4x1600	0.5-4	400-1600	30-6	±0.05	0-120	15,20
120-4x2000	0.5-4	500-2000	30-6	±0.05	0-120	15,20
120-6x1600	0.6-6	400-1600	30-5	±0.08	0-120	15,20
120-6x2000	0.6-6	500-2000	30-5	±0.08	0-120	15,20

Qiangda200
Model	Sheet Thickness(mm)	Width(mm)	No. of Slitting	Tolerance	Speed	Coil Weight(T) max
200-1x650	0.2-1	150-650	30-8	±0.05	0-200	3,5
200-1x850	0.2-1	300-850	30-8	±0.05	0-200	5,10
200-1x1050	0.2-1	300-050	30-8	±0.05	0-200	5,10
200-1x1300	0.2-1	400-1300	30-8	±0.05	0-200	10,15
200-2x650	0.3-2	150-650	30-8	±0.05	0-200	3,5
200-2x850	0.3-2	300-850	30-8	±0.05	0-200	5,10
200-2x1050	0.3-2	300-1050	30-8	±0.05	0-200	5,10
200-2x1300	0.3-2	400-1300	30-8	±0.05	0-200	10,15
200-2x1600	0.3-2	400-1600	30-8	±0.05	0-200	15,20
200-2x2000	0.3-2	500-2000	30-8	±0.05	0-200	15,20
200-3x1300	0.4-3	400-1300	30-6	±0.05	0-200	10,15
200-3x1600	0.4-3	400-1600	30-6	±0.05	0-200	15,20
200-3x2000	0.4-3	500-2000	30-6	±0.05	0-200	15,20
200-4x1300	0.5-4	400-1300	30-6	±0.05	0-200	10,15
200-4x1600	0.5-4	400-1600	30-6	±0.05	0-200	15,20
200-4x2000	0.5-4	500-2000	30-6	±0.05	0-200	15,20
200-6x1600	0.6-6	400-1600	30-5	±0.08	0-200	15,20
200-6x2000	0.6-6	500-2000	30-5	±0.08	0-200	15,20

Installed for customers on site
ABOUT US
PACKING&TRANSPORTING
FAQ
1.What is your advantages?
More than 20 years experience in manufacture. We have professional engineers to provide technical support and rich experience in solving emergency. High degree of automation, high shearing accuracy and fast running speed.
2. Do you have after sales support?
We provide thoughtful after-sales service, and also arrange complete management cases for customers.
Training: Customers can get great training related to our products and technology from our factory Qiangda&Yuao.
On-site Service: Qiangda&Yuao has a complete technical service system.
We make sure that "the service team will go where our customer needs." May you have questions, please contact us or leave a message online.
Technical Support: We offer the technical support if needed. Our engineers will help you with installation and operation.
3. What information you need to prepare the quotation:
1. Coil thickness (min-max)
2. Pipe diameter (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. How many tons you need per day or per mon

---
