Water Cooling Cold Cutting Waste Plastic Recycling Granulator Machine

Product Description

Product Description
Two-stage vent style recycling making granular plastic extruder line, is a equipment for the waste plastics recycling & palletizing, with are build up in series mainly by two vent style plastics extruders. Our company produce the extruders that the screws are designed to the various natures of the different material are suitable in recycling making granule, Screws and barrels experience special treatments to become harder, so it endures the wear and tear better with a higher output. The two stage extruders are designed the equipment of vented port and screen changing quickly. Both vented hole and common one can drive the water in the material out and the impurity of plastic is filtrated by screen in the processing course so as to ensure products in good quality. The exhaust type plastic granules extruders manufactured by our Factory are suitable for recycling plastic granules extruding at LDPE, HDPE, PP, PS, PC, and ABS,. Some types of our machines have been designed in reference to foreign know-how and according to our national practice that they have been adopted by massive customers
Product Parameters

Type		PS130/125	PS140/125	PS150/140
The fist stage	Dia. Of screw	130mm	140mm	150mm
	Length of screw	2600mm	2800mm	3000mm
	Material of screw	38CrMoAlA, nitrided treatment
	Material of barrel	40CrMoAlA, nitrided treatment
	Vented style	Single vent port
	Power of main motor	45kw	55kw	75kw
	Heating zone	6 zone	7 zone	9 zone
	Heating power	28kw	38kw	45kw
	Screen exchanger	Hydraulic double screen stage
The second stage	Dia. Of screw	125mm	125mm	140mm
	Length of screw	1600mm	1600mm	1800mm
	Material of screw	38CrMoAlA, nitrided treatment
	Material of barrel	40CrMoAlA, nitrided treatment
	Vented style	Single vent port
	Power of main motor	15kw	15kw	18.5kw
	Heating zone	3 zone	3 zone	5 zone
	Heating power	28kw	38kw	45kw
	Screen exchanger	Hydraulic double screen stage
Other device	Electric control box	1 set	1 set	1 set
	Power of cutter	4kw+inverter	4 kw+inverter	5.5kw+inverter
	Number of knife	21 pcs	21 pcs	30 pcs
	Cooling tank	2.5m length	2.5m lenth	3m length
	(Output):H: ABS, PS, PP, PC	H: 180-250kg/h	H: 230-300kg/h	H: 300-400kg/h
	S: PE, PP film material	S: 120-150kg/h	S: 150-200kg/h	S: 180-250kg/h

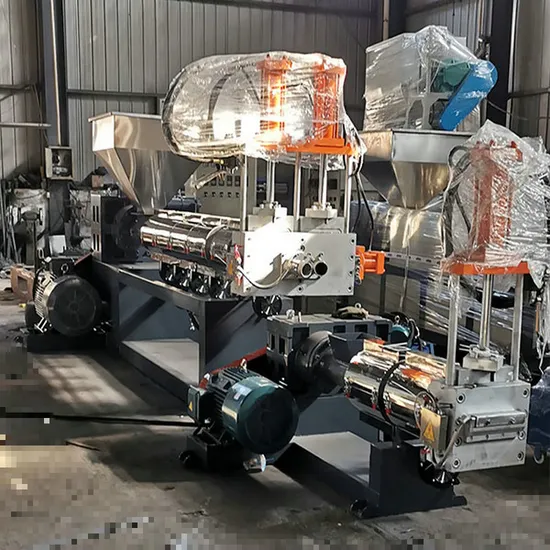

Detailed Photos
Trade Terms
1.Packaging: wooden pallet or film wrapped (Fumigation wooden case usually)
2.Delivery time: 5-35/55 days after receiving deposit, depends on order and machine condition.
3.Exporting seaport: Ningbo port ; Shanghai port
4.Payment: we appreciate T/T 30% deposit, 70% balance paid before dispatching; Western Union;L/C acceptable if your goverment policy required
5.Trade terms: ExW,FOB,CFR,CIF,Door to Door, DDU, DDP,
Packaging & Shipping
FAQ
1.Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 30minutes by air from Shanghai, around 5hours by train from Shanghai
2.What machines range we make & supply?
Our factory focus on manufacturing extrusion lines, complete bag production line, etc; OEM, ODM, with support of strong R&D team, we also help customer get best solutions for special equipments and plastic machinery;
3.How can we get satisfied machine in hand?
We will make test once machine in ready, to check every parts working condition and electrocircuit; will record relative photo and video for installation in your place.
3. What should we charge if we need engineer service in our country?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary (negotiable)
4. How long is your machine's warranty period?
All our machine have two years guarantee, starting from finished installation. we still keep service for whole life.
5. How could we do if the parts broken within warranty?
We would send the free replacement spare parts during the warranty date.

---
