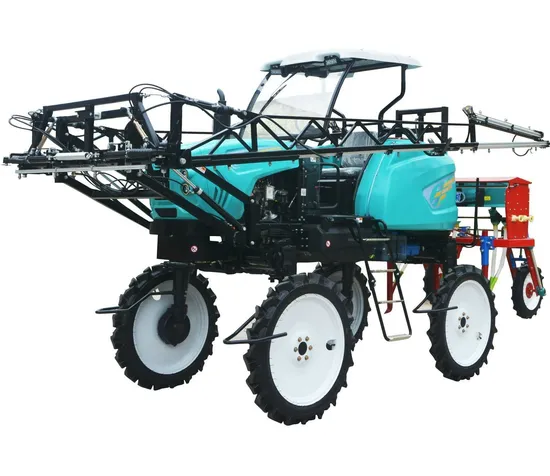

Self-Propelled Boom Sprayer for Pesticide Spraying Rice Wheat Soybean

Product Description

Product Description:
The company has cultivated plant protection machinery for more than 10 years, has a professional technical team, and has developed and produced a number of products through the national 3C certification, and obtained a number of technical patents.
Suitable for wheat. rice, corn, cotton, rapeseed, tea tree, planting seedlings and vegetables, sugar cane and other crops during different growth period for insecticides, fungicides, herbicides and defoliants ripening, can-sugar promoter, foliar fertilizers

Project name		Specification parameters		Item name	Specification parameters
Overall size	Overall dimensions (mm)	5250*1960*3080	Powertrain	Engine power (kw/r/min)	36.8/2400
	Ground clearance (mm)	1060		Battery capacity	24V, 2*45Ah,
	Spray length (mm)	12000/15000		Engine type:	Four-cylinder water-cooled inline
	Spray rod lift (mm)	320/1720	Walking system	Weight of the whole machine (Kg)	2250
	Wheel base (mm)	1500/1800		Drive	Four-wheel drive
	Wheelbase (mm)	2200		Steering	Four-wheel
	Cab	Adjustable		Gearbox	Uniquely designed 8-speed gearbox very smooth.
Spray system	Spray rod position	Front		Brakes	Drum Brake
	Spray rod material	Aluminium		Tires	Pneumatic rubber
	Number of spray bodies (each)	24/32		Tire diameter (mm)	1080
	Spray rod type	Hydraulic lift		Tire width (mm)	120
	Medicine cabinet Volume (L)	800/1000		Turning radius (mm)	3050
	Working pressure (Mpa)	Hydraulic		Drive mode	mechanical drive
	Drug pump flow (L/min)	36-81		Walking speed (km/h)	Low :2.53/8.8/13.2/3.3; High:4.95/17.6/26.4/6.6
	Medicated liquid stirring	Jet +Reflux	Work benefit	Application efficiency	Arid land 2-3hec/h
	Medicine pump construction	3-cylinder plunger pump		Topdressing efficiency	Arid land 2-3hec/h
	Medicine pump drive	Belt drive		Fuel consumption (L/h)	1.5-2L/h

WORKSHOP:
Exhibition :
FAQ:
Q: how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment
Q: what can you buy from us?
A: We have the most complete range of agricultural machinery spraying accessories in the industry, as well as various types of spraying machines
Q: What's your delivery time?
A: Normally about 15-30days after got your deposit.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF;

---
