Product Details
Product Description
Product Description
As a professional tow truck wrecker supplier, our tow trucks can meet all your demand. We Chengli Special Automobile Co., Ltd. can manufacture and sell Right hand wrecker tow trucks, left hand drive wrecker tow trucks, 4x2 wreckers, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker truck types, we produce flatbed tow truck, under lift wrecker truck, rotator tow truck, full landing wrecker tow truck, etc.
main technical parameters of Euro 5 dongfeng tianjin wrecker towing truck manufactured by Chengli Special Automobile Co., Ltd. as below
1. The road wrecker truck is also called rollback wrecker beds truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, towing truck, etc, which is used for dealing with the cars and trucks in accident.
2. Our recovery truck vehicle consist of the chassis, hoisting equipment,truck tow hook, tow truck winch,
tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
3. Currently there are tow mainly design for wrecker trucks, flat bed model and towing model.
Flat bed model is mainly designed for cars, which could transport two units cars, with the weight design 5 tons around.
Towing model is mainly designed for deal with heavy duty vehicles, with the weight above 10 tons.
If you're interested in our flatbed wrecker truck with telescopic crane boom, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995）

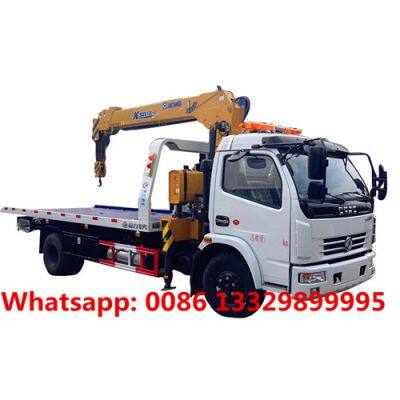

More pictures of DONGFENG wrecker towing truck with crane boom is as below.
main technical parameters of DONGFENG wrecker towing truck with crane boom is as below.
Overall parameters
| Product name
| dongfeng 4tons wrecker tow truck with telescopic boom for sale
|
Manufacturer
| Chengli Special Automobile Co., Ltd.
|
Product model
| CLW5081TQZ3
|
Total mass(kgs)
| 8495
|
Rated mass(kgs)
|
|
Curb mass(kgs)
| 6150
|
Overall dimension (L*W*H)(mm)
| 8000×2300×3250
|
Chassis parameters
| Driver cab
| dongfeng 4*2 LHD single row driver cab with 3 seats
|
Approach/departure angle(°)
| 22/11
|
Front/rear suspension(mm)
| 1180/2420
|
Axles nos.
| 2
|
Wheelbase(mm)
| 4400
|
Axle load(kgs)
| 3060/5435
|
Max speed(km/h)
| 90
|
Tire specification
| 8.25-16*6
|
Steel spring
| 11/13+8
|
Front/rear tread(mm)
| 1770/1640
|
Engine model
| CY4102BZQ; B140 33
|
Fuel type
| Diesel
|
Emission standard
| Euro Ⅲ/Ⅳ/Ⅴ
|
Gearbox
| 5 speed gearbox, manual
|
Upper part parameters
| Flatbed dimension(L*W)(mm)
| 5600*2300
|
Rear hydraulic flapping plate Length (mm)
| 1000
|
Total flatbed length (mm)
| 5600+1000
|
Hydraulic winch
| 4tons
|
Operation way
| Bilateral linkage operation
|
Rear towing arm
| 2.5tons loading capacity of the rear towing arm
|
Loading capacity of the flatbed
| 4tons
|
Wire rope
| 21m length
|
Auxiliary wheels
| 2 sets
|
Special binding belts
| 4 sets
|
Caller with alarm light
| Yes
|
| Crane boom
| Choose to install 3.2tons/4tons telescopic crane boom
|
>>
