Mattress Computerized Chain Stitch Multi-Needle for Mattress Fabric for Quilting Machine

US$39,600.00-47,500.00 1 Set (MOQ)

Basic Info.

Model NO.
HY-W-JH
Certification
ISO, CE, Mattress Machine
Condition
New
Number of Head
100
Voltage
380V
Type
Computerized Quilting Machine
Width of Quilting
2450mm
Space Between Needles
25.4mm
Total Power Required
7kw
Gross Weight
4500kg
Knitting Machine Cut
Hy-W-Jh
Thickness of Quilting
Less Than 80 mm (for All Patterns)
Transport Package
Plywood Pallet
Specification
21.36cbm
Trademark
Xidengbao
Origin
Guangdong China(Mianland)
HS Code
8452219000
Production Capacity
25 Sets/Month

Product Description

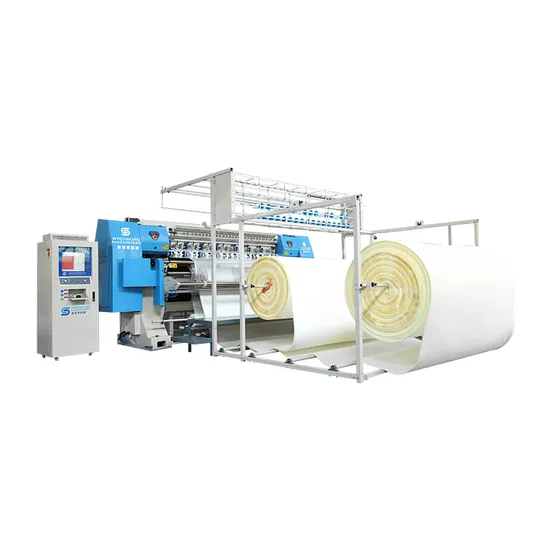

HY-W-JH Computerized Chain Stitch Multi-Needle Quilting Machine
HY-W-JH High Speed Computerized Chain Stitch Multi-needle Quilting Machine is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available
Technical Specification:
Dimension (L*W*H) 4800*1200*2000mm
Width of quilting 2450mm
Space between needle rows 50.8, 76.2, 127(5" ) 76.2, 76.2, 152.4(5" )
Space between needles 25.4mm
X-axis movement distance 410mm
Thickness of quilting ≤ 80mm (for all patterns)
Length of step 3-8mm
Speed between production 60-230m/Hour
Model of needle 24/180 23/160 22/140 21/130
Speed of main shaft 200-990RPM
Power 7KW
Voltage 380V /220V 50HZ/60HZ
Machine weight 4500KG
