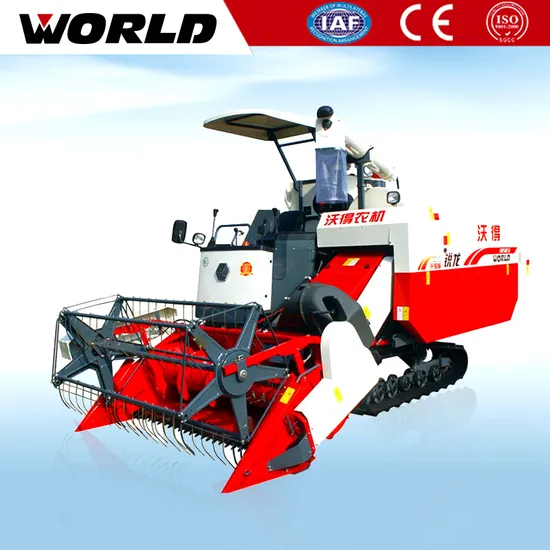

Agriculture Crawler Type Combine Harvester for Rice and Wheat

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

4LZ-4.0E

Application

Rice, Wheat, Soybean

Power Source

Diesel

Harvest method

Cutting

Drive Type

Vee belt

Transmission

Hard Shaft

Portable Harvester Type

Side Hanging Type

Certification

QS, ISO9001:2008

Color

Red

Condition

New

Application Field

Agriculture

Warranty

One Year

Harvester

Rice Combine Harvester

Feeding Capacity

4kg/S

Cutting Width

2000-2200mm

Engine Power

88HP

Threshing Cylinder

620X2050mm

Efficiency

0.5-0.9ha/H

Transport Package

in Container

Specification

ISO9001, CE

Trademark

WORLD

Origin

Jiangsu

HS Code

84623990

Production Capacity

1000PCS/Year

Product Description

agriculture crawler type combine harvester for rice and wheat
Main Features:
1.Equipped with turbocharged engine 64.7kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields.
Specifications:

MODEL		UNIT	4LZ-4.0E
TYPE			FULL-FEED,TRACK COMBINE
ENGINE	MODEL		498BT/BZT/L, 4C6-88M22
	TYPE		WATER-COOLED,4-CYLINDER, DI-INJECTION, VERTICAL DIESEL
	RATED POWER	KW/HP	64/88
	RATED ROTATION SPEED	RPM	2650
	FUEL TANK CAPACITY	L	130
OVERALL DIMENTIONNS		MM	5100x2890x2700
WEIGHT		KG	2800
CUTTING WIDTH		MM	2000/2200
FEEDING CAPACITY		KG/S	4
GROUND CLEARANCE		MM	300
WORKING EFFICIENCY		HA/H	0.5-0.9
TYPE OF BLADE			V TYPE/LEFT AND RIGHT
TYPE OF CUTTING BAR AUGER			SCREW CONVEYING
THRESHING	TYPE		AXIAL FLOW TYPE WITH BEAT BARS
THRESHING	THRESHING CYLINDER	MM	620X2050
FILTRATE TYPE			VIBRATING SIEVES+CENTRIFUGAL FAN
TRACK	SIZE	MM	400/450/500X90X51
TRACK	TRACK GAUGE	MM	1150
TYPE OF GEARBOX			HYDRAULIC TYPE WITH HST
