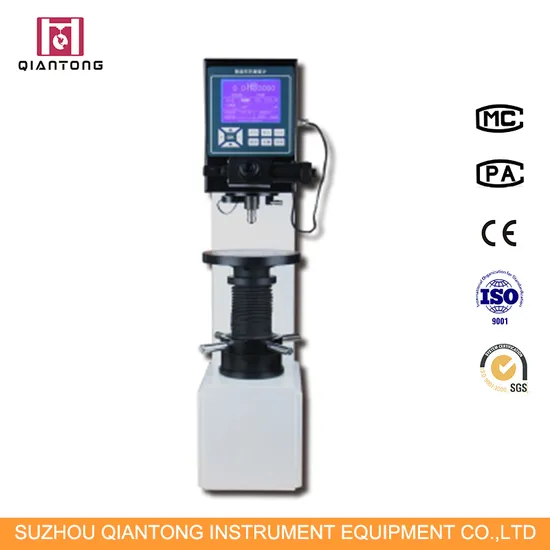

Touch Screen Auto Brinell Hardness Tester for Tempering Steel

Product Description

1. Qiantong main scope of testing machine Electronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)
2. Product
Features: Electronic electric loading, high precision sensor, with a unique closed - loop control system LCD display test status, hardness value and mathematical statistics, clear and intuitive Directly select the hardness scale, the force value automatically changes in the test parameters Eyepiece structure with digital encoder The hardness values of rockwell and vickers can be converted The data of experimental results can be output by built-in printer 3. Specifications

Type	THB-3000D		THB-3000DX	THB-3000S
Brinell hardness scale	HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Testing force(Kgf)	62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N) 187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N)
Meeting standards	BSEN 6506, ISO 6506, ASTM E10, GB/T231
Precision	≤1%	62.5~250kgf≤1% 500~3000kgf≤0.5%
Revolution of measuring device	0.5%	0.1um		0.01mm
Measurement accuracy	±0.5%
Measurement range	3.18-653HBW
Loading time	1~99S		0~99S
Data output	Built-in printer,RS232		LCD display
Data stored	Auto stored
Sample height	200mm			230mm
Distance from head to wall	155mm
Size	550×210×780mm			550×210×800mm
Weight	110kg
Power	AC220+5%,50~60Hz

FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.

---
