Full Automatic Embossing Folding Mini Handkerchief Paper Machine Plant

Product Description

Product Description

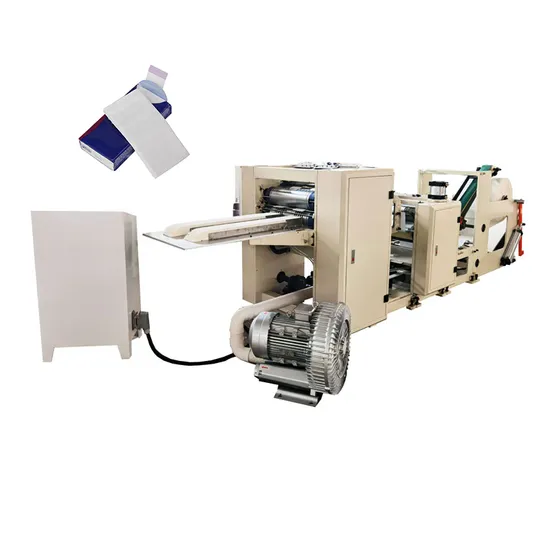

Portable Handkerchief Paper Folding and Packing Machine

Description:
CIL-MFT-21Mini type facial tissue machine adopts vacuum adsorb and high-speed to fold the paper. Adopting step-less adjusting speed, and it is running smoothly. It is special equipment for 4 folding facial tissue machine. This machine composed of raw paper stand, embossing unit, lengthways folding unit, cutting and transversal folding unit, It runs a whole set of rolling to fix difference tension of raw paper, embossed, lenghtways folding, pushing the paper, cutting the paper, transversal folding paper and finished products transfer.
Features:
1...Embossing design on raw paper with clear embossing shape.
2. Controlled with rolling tension to fit production with different tension of raw paper.
3. Mill edge infolding, the appearance of product is elegant.
4. Adopting screw turning knife to cut for easy adjustment
5. Adopting vacuum folding format.
6. Equipped with single color or double color printing according to customers' requirement.
Technical Parameter:

Model	CIL-MFT-21A	CIL-MFT-21B
Power	4.5Kw(380V or 220V 50Hz)	5.5Kw(380V or 220V 50Hz)
The max. production speed	400-500 pcs/min	700pcs -1000 pcs/min
Specification of finished product(LxWmm)	a.75x52 (opening 210x210) b.105x52 (opening 210x210)	a.75x52 ( opening 210x210) b.105x52 (opening 210x210)
Overall dimension(m)	3.15x0.77x1.26(LxWxH)	3.15x0.98x1.26(LxWxH)
Weight of equipment	About 0.8T	About 1.2T

Company Profile

Packaging & Shipping
Certifications

FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time? A: Generally it is 5-15 days if the goods are in stock. or it is 70-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
