PP/PE Film Pelletizier Machine/PP/PE Compactor Granulation Line

Product Description

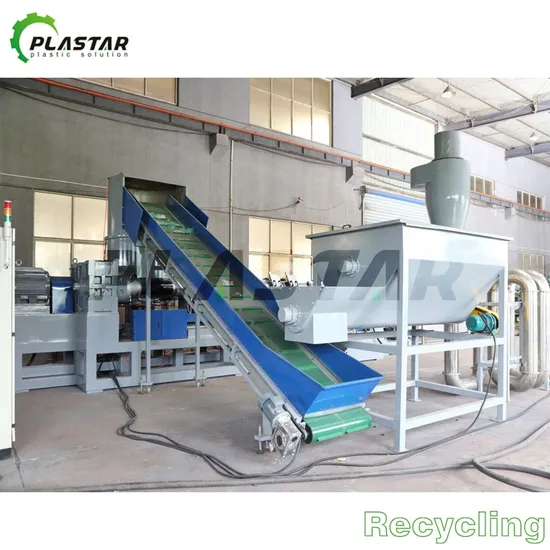

Waste Plastic Pelletizing Recycling Machine
The PL series compacting and pelletizing system combines function of crushing, compacting, plasticization, pelletizing and storage to one step, applied in the plastics recycling and pelletizing process. PL system is a reliable and efficient solution for plastics films, barrel, drum, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
Final products are in the form of pellets/ granules, which can be directly put into the production line for film blowing, pipe extrusion and plastic injection, etc.
Specifications:

Model Name	PL series
Recycling Material	HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS, ABS, PET
Final Product Shape	Pellets/ Granules
System Composition	Belt conveyor, cutting compactor, single screw extruder, pelletizing device, water cooling unit, dewatering section, conveying blower and production silo
Capcity	80kg/h-1200kg/h
Feeding Device	Belt conveyor (standard), Rolls hauling off device (Optional)
Compactor Volume	300 Liters-1400 Liters
Screw Diameter	85mm-200mm (standard)
Screw material	38CrMoAlA nitride steel( SACM-645), bimetallic ( Optional)
Screw L/D	31/1, 32/1, 33/1, 34/1, 36/1 (depending on features of recycles)
Barrel's Heating	Ceramic heater or Casting Aluminum heater
Barrel's Cooling	Air cooling through fan blowers
Vacuum Degassing	Double vented degassing (Standard)
Pelletizing Type	Water ring die-face hot pelletizing
Voltage Standard	Depending on project's location
Optional Devices	Metal detector, rolls hauling off device, micro feeder for masterbatch, additives, chiller, etc.
Delivery Time	60 days after order takes effect.
Warranty	13 months since date of bill of lading
Technical Service	Project design, suggestion on factory construction, installation and commissioning

Working steps of PL Series compacting and pelletizing system
1. Feeding: as standard design, plastic scraps such as film, filament, raffias will be conveyed into the compacting room through belt conveyor; to handle rolls' scraps, roll hauling off device is an optional feeding method. Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor's room is. Metal detector can be combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal is found in feeding section.
Suitable raw material:
After recycling pelletizing machine:
2. Crushing and compacting: the rotatory blades of compactor will cut the fed raw mateiral into pieces to reduce the size. Frictional heating which is caused by high speed rotatory blades will heat and let scraps shrink just below their melt point. Crusheing, drying and compacting the material which enables a fast and stable feeding from the compactor directly into the extruder.
3. Screen changer: a regular single-plate double-station screen changer no mesh screen changer can be installed on head of extruder to remove impurities. The requirements on the filter technology depend heavily on the quality of the input material as well as the planned use of granules.
Main technical parameter:

PL series single stage pp pe film granulator machine
Model	SJ-65		SJ-80		SJ-100	SJ-120		SJ-150
Screw Dia.	65		80		100	120		150
L/D	28-30		28-30		28-30	28-30		28-30
Capacity	60-80kg/h		80-100kg/h		150kg/h	300kg/h		500kg/h
PL series double-stage pp pe film granulator machine
Model		SJ-100/100		SJ-120/120			SJ-150/150		SJ-200/200
Screw Dia.		100		120			150		200
L/D		28-30 10-15		28-30 10-15			28-30 10-15		28-30 10-15
Capacity		120-180kg/h		220-300kg/h			400-500kg/h		800-1000kg/h

Customer visting:
Machine package&shipping:
Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.

---
