China Factory Compression Vacuum Packaging Sealer for Foam, Latex Pillow, Mattress, Compressor Press Machine

Product Description

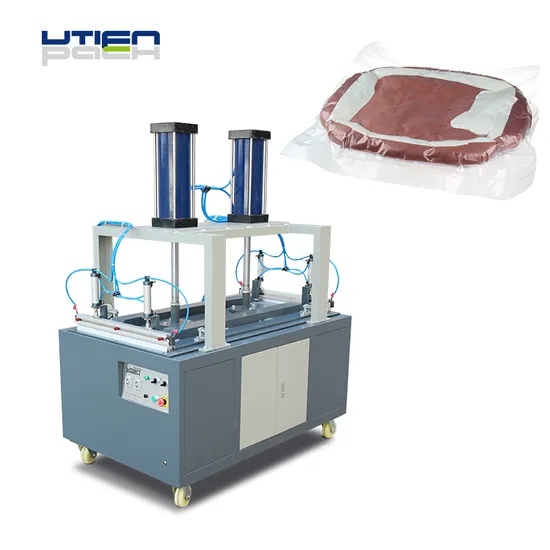

Compression Vacuum Packaging Sealer
It's all in one machine with compress, vacuum and heat sealing function.
It has been wide applied to pack pluffy products,such as pillow, mattress, cushion,pet bedding,blanket,mattress,and etc. With double stations, it can work faster avarage machine. According to the dimension of your product, our machine can be customized accordingly.
Advantages

1)Heavy-duty capabilities:It's designed to work with heavy-duty poly-bags.
2)Versality:It's able to handle a variety of products of different sizes-indlucing foled items.
3)Protective:You can adjust the compression height to protect the accessories in the products.
4) Max space saving: Min 10mm after compression depending on products

More application:







Convenience
Easy to operate and change the settings. With Microcontroller it all become easier. Vacuum and sealing process is fully automatic after the product is placed in right position and in good condition.

Microcontroller control system
With Microcontroller control system it is easy to control the vacuum time and sealing time to achieve much accurate result. Higher vacuum degree and much better sealing seam is quite easy to have.

Powerful and Straight Sealing Bar
Pneumatic sealing bar keeps average pressure on sealing material, which makes the sealing seam smooth and strong. Vacuum assist system optional for large product compressing.


Technical Data

Machine Parameters
Dimensions	1480mm*965mm*1800mm
Weight	480kg
Power	1.5kW
Voultage	220V / 50Hz
Sealing Length	700mm (Customizable)
Sealing Width	8mm (Customizable)
Maximun Vacuum	≤-0.08MPa
Compress Air Requirement	0.5MPa-0.8MPa
Machine Model	DZYS-700/2
Product height(max)	350mm
Product volume(max)	700*1300*350mm

The parameter in this sheet is for reference only, some of the data may be different with different case.




FAQ

Q1:How long does it take to deliver the machine after the order ?
A1:Usually it will take 45 working days to manufacture the machine and make it ready to deliver.
Q2:What do you need to make a specific offer for my product?
A2:To make a special offer we will need the Sealing length and width and other functions you want to use on this machine. If with other special request please also inform us before we make the project.
Q3:Can you offer oversea service?
A3:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.



Utien Pack Company profile
Utien Pack Co,. Ltd. is a technical enterprise aiming at developing highly automated packaging line. Our current core products covered multiple products over different industries such as food, chemistry, electronic, pharmaceuticals and household chemicals. Utien Pack is founded in 1994 and becoming a well-known brand through 20 years' development. We've achieved 4 national standards drafting and have more than 20 patent technology. Our products are produced under ISO9001:2008 certification requirement. We build high quality packaging machines and make a better life for everyone using the safe packaging technology. We are offering solutions to make a better package and a better future.

---
