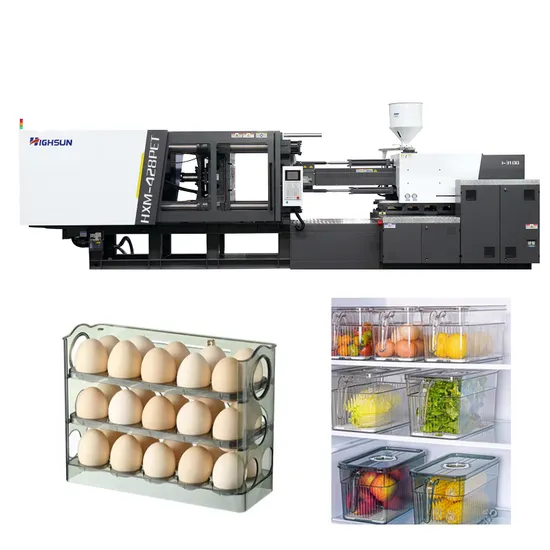

Hot Sale Pet Series Preform Bottle Injection Molding Machine 24 48cavautomatic

US$20,000.00-75,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM428PET
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, SGS, TUV
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
According to Countries
Showroom Locate
Malaysia,Indonesia,Turkey,Mexico,Uzberkista,Mn
Condition
100% New
Machine Weight
14.2 Ton
Transport Package
Standard Packing
Specification
8.21*2.02*2.32
Trademark
HIGHSUN
Origin
China
HS Code
847710
Production Capacity
7000sets/Year

Packaging & Delivery

Package Size
821.00cm * 202.00cm * 232.00cm
Package Gross Weight
14200.000kg

Product Description


PET Series Plastic Injection Moilding Machine
Specializing in PET series of injection molding machines
1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;
Main feature for PET machine: Enlarged motor & pump system; Special structure and steel for screw & barrel, L/D 24. Enlarged length of machine base. Enlarged ejector cylinder.
MODEL: HX(*)428PET
TECHNICAL PARAMETER TABLE
INJECTION UNIT SCREW DIAMETER mm 95
SCREW L/D RATIO L/D 24
INJECTION CAPACITY (THEORETICAL) cm3 2622
INJECTION WEIGHT(PET) g 3042
oz 107.3
INJECTION PRESSURE MPa 130
INJECTION RATE g/s 777
PLASTICIZING CAPACITY g/s 150
SCREW SPEED rpm 160
CLAMPING UNIT CLAMP FORCE KN 4180
OPEN STROKE mm 710
MAX. MOULD HEIGHT mm 800
MIN. MOULD HEIGHT mm 280
SPACE BETWEEN TIE-BARS (W×H) mm 770*720
EJECTOR FORCE KN 193
EJECTOR STROKE mm 210
EJECTOR NUMBER n 13
OTHERS PUMP PRESSURE MPa 17.5
MOTOR POWER KW 30+30
HEATING POWER KW 32.85
MACHINE DIMENSION (L×W×H) m 8.21*2.02*2.32
MACHINE WEIGHT t 14.2
OIL TANK L 687



Refernce
Machine: HXM 428-PET Machine: HXM 358-PET
1L bottle preform Bottle preform
Mould: 48 cavities Mould: 48 cavities
Weight: 30 g Weight: 12 g
Cycle time: 22s Cycle time: 17s
