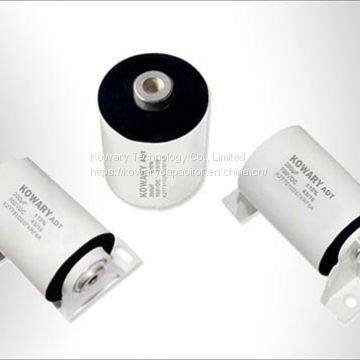

■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, filled by solid resin, non-inductive type
Case Polyester tape wrapping; UL94V-0 material filling
Output Threaded insert M6 or M8, 2 Lugs
Dissipation factor ≤2×10-3 Measured at 100 Hz and 20±5℃
Life expectancy 100,000 hours at UNDC and 70 ℃(Hot-spot temperature)
Dielectric strength 1.5×UNDC applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 10s
Insulation resistance(IR*CN) ≥ 5000s but need not exceed 30GΩ, after 1 minute of electrification at 100VDC (20±5℃)
■OVER-VOLTAGE
1.10×UNDC for maximum 8 Hour per day
1.15×UNDC for maximum 30 minimum per day
1.20×UNDC for maximum 5 minimum per day
1.30×UNDC for maximum 1 minimum per day
1.50×UNDC for 30 ms no more than 1000 times
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
| Capacitance
(μF)
| Dimension
| Du/dt
(v/μs)
| Imax @45℃ @10KHz (A)
| ESR @1.0KHz (mΩ)
|
D
| L
| Output
|
UNDC 500Vdc, Us 750V, Ur 150V
|
K2T501D506KR###***
| 50
| 50.0
| 40.0
| M6
| 32
| 30
| 1.4
|
K2T501D806KR###***
| 80
| 52.0
| 50.0
| M6
| 22
| 31
| 1.6
|
K2T501D107KR###***
| 100
| 58.0
| 50.0
| M6
| 22
| 36
| 1.4
|
K2T501D157KR###***
| 150
| 58.0
| 64.0
| M6
| 15
| 37
| 1.4
|
K2T501D257KR###***
| 250
| 74.0
| 64.0
| M8
| 15
| 53
| 1.2
|
K2T501D307KR###***
| 300
| 56.0
| 114.0
| M6
| 7
| 37
| 2.7
|
K2T501D507KR###***
| 500
| 72.0
| 114.0
| M8
| 7
| 54
| 1.8
|
UNDC 700Vdc, Us 1050V, Ur 200V
|
K2T701D356KR###***
| 35
| 53.0
| 40.0
| M6
| 47
| 30
| 1.6
|
K2T701D506KR###***
| 50
| 52.0
| 50.0
| M6
| 32
| 29
| 1.9
|
K2T701D806KR###***
| 80
| 65.0
| 50.0
| M6
| 32
| 40
| 1.4
|
K2T701D107KR###***
| 100
| 60.0
| 64.0
| M6
| 21
| 36
| 1.9
|
K2T701D157KR###***
| 150
| 72.0
| 64.0
| M8
| 21
| 48
| 1.4
|
K2T701D207KR###***
| 200
| 58.0
| 114.0
| M6
| 10
| 35
| 3.1
|
K2T701D307KR###***
| 300
| 71.0
| 114.0
| M8
| 10
| 48
| 2.2
|
UNDC 900Vdc, Us 1350V, Ur 250V
|
K2T901D206KR###***
| 20
| 50.0
| 40.0
| M6
| 66
| 25
| 2.0
|
K2T901D306KR###***
| 30
| 50.0
| 50.0
| M6
| 44
| 25
| 2.4
|
K2T901D406KR###***
| 40
| 58.0
| 50.0
| M6
| 44
| 31
| 1.9
|
K2T901D506KR###***
| 50
| 53.0
| 64.0
| M6
| 29
| 27
| 2.7
|
K2T901D107KR###***
| 100
| 74.0
| 64.0
| M8
| 29
| 45
| 1.6
|
K2T901D157KR###***
| 150
| 63.0
| 114.0
| M6
| 14
| 36
| 3.3
|
K2T901D207KR###***
| 200
| 72.0
| 114.0
| M8
| 14
| 45
| 2.6
|
UNDC 1100Vdc, Us 1650V, Ur 300V
|
K2T112D156KR###***
| 15
| 51.0
| 40.0
| M6
| 83
| 24
| 2.2
|
K2T112D256KR###***
| 25
| 53.0
| 50.0
| M6
| 56
| 26
| 2.4
|
K2T112D406KR###***
| 40
| 67.0
| 50.0
| M6
| 56
| 37
| 1.7
|
K2T112D506KR###***
| 50
| 61.0
| 64.0
| M6
| 37
| 32
| 2.4
|
K2T112D806KR###***
| 80
| 77.0
| 64.0
| M8
| 37
| 46
| 1.7
|
K2T112D107KR###***
| 100
| 60.0
| 114.0
| M6
| 18
| 31
| 4.1
|
K2T112D157KR###***
| 150
| 73.0
| 114.0
| M8
| 18
| 43
| 2.9
|
Remark: 1. ### Output, output size and style; *** Internal code.
2. Customization for special specification and requirement is available.
>>
