US$199,999.00-299,999.00
|
1 Set
(MOQ)
|
Basic Info.
Plastic Processed
Pet/PLA/Corn Starch
Product Type
Roll Sheet/ Slice Sheet
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Gear Box
High Torque and Low Noise
Material of Roll
Alloy Steel
Transport Package
Wooden Case
Specification
Dimension(mm) 23000(L)*4000(W)*3000(H)
Production Capacity
50 Sets for One Year
Product Description
Product Description
I. Application & parapeter
- Use co-extrusion technology, which produce multi-layer co-extruded PET sheet, such as APET/PETG. PETG/APET/PETG. APET/RPET/APET. It widely used in compression molding, printing, metal packaging and etc.
- Equipped with high precision distributor, equal layering and each layer proportion is adjustable.
- Horizontal roller pressing structure, operation and maintenance more convenient.
- Each roller is driven independently by motor, line speed and extruder speed synchronous control.
- PLC control,full automatic functions for the actual parameter setting, data and the feedback operation, the alarm.

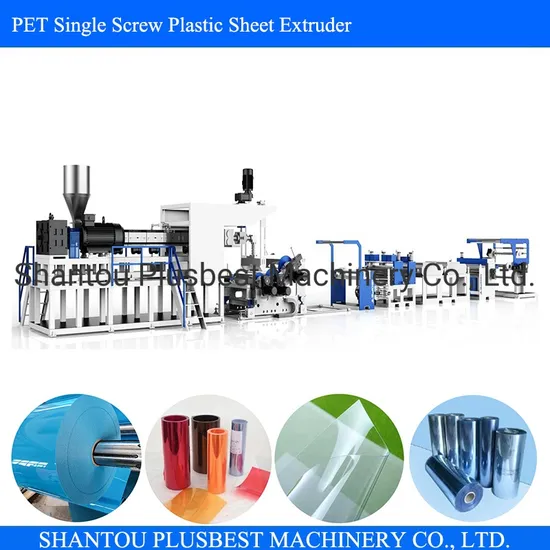

II. Machine Picture
III. Techanical Data
| Mode No. | PET75-1000 | PET85-1000 | PET95/50-1000 | PET105/65-1200 |
| Sheet Layer | A | AB/BA/ABA |
| Available Material | APET,PETG,RPET |
| Sheet Thickness(mm) | 0.12-1.6 |
| Sheet Width(mm) | ≤800 | ≤800 | ≤800 | ≤1000 |
| Screw Diameter(mm) | Φ75 | Φ85 | Φ95/Φ50 | Φ105/Φ65 |
| Max. Capacity(kg/h) | 400 | 700 | 900 | 1000 |
| Total Power(kw) | 275 | 400 | 500 | 600 |
| Dimension(m) | 23*4*3 | 24*4.3*3 | 25*5*3 | 25*5.2*3 |
IV.About Us PLUSBEST is a professional machinery enterprise, supplier, importer and exporter located in SHANTOU CITY OF China.
As the professional machinery enterprise, we our team have already been working in this field for more than decade, focusing on PLASTIC PACKAGING MACHINERY, such as Plastic Sheet Extruder, Thermoforming Machine, Vacuum Forming Machine, Offset Printing Machine, Drinking Straw Machinery, Film Blowing Machine, Auxiliary, Mould etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware etc.
We PLUSBEST MACHINERY have been enjoying a great reputation. So far our overseas business has been reached to Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia. High quality and service by heart make more and more partners working with us for bright future.
With both skillful export experience and professional equipment knowledge, we all PLUSBEST people are always to provide better service and innovating technology support, as well as new products introduction for customers all over the world.
Warmly welcome home and abroad friends to visit PLUSBEST.
>>
