PA Tube Nylon Tubing Polyamide Hose High Pressure and Temperature Line Nylon Tube Hose

Product Description

Model	Size	Colour	B.P MIN	20ºC WP.	Rmin.MIN	Est mm	Int mm
	Mm		Bar	Bar	Mm	Mm	Mm
RSD201A	4*2,2	Transparent,Black	110	36	20	0,1	0,1
RSD201B	4*2,5	Transparent,Black	95	31	20	0,1	0,1
RSD201C	5*2,6	Transparent,Black	127	38	20	0,1	0,1
RSD201D	6*4	Transparent,Black	80	27	20	0,1	0,1
RSD201E	6*3	Black	127	38	20	0,1	0,1
RSD202A	6*3	Black	270	90	20	0,1	0,1
RSD202B	8*5	Black	230	90	30	0,1	0,1

Product parameters
Plastic pipe made of PA tested in accordance to DIN 73378
HOSE OD.:6+0.1/-0.1MM
HOSE Id:3.0MM
wall thickness;1.5MM+0.1/-0.1MM
Max Betriebsdruck Statisch:90Bar
Burst pressure at 20ºC:270Bar
Safety Factor:3:1
Weight: 2.25kg/100m
Wind power lubrication hose solutionCommercial automotive lubrication hose solutionsMining machinery lubrication hose solutionsConstruction machinery lubrication hose solutionsPort terminal lubrication hose solutions
Product use
We offer 4 types of Remote Grease Line Systems:
1)6mm high pressure grease tube, with compression fittings.
2)6mm high pressure grease tube, with high pressure pushin fittings.
3)8.6mm extreme high pressure grease tube, with field adaptable fitting.
4)11.3mm super extreme high pressure grease tube, with field adaptable fittings.
Packing and shipping
1.Quality test: 100% pressure test and leakage test before packing.
2.Packing details: standard export packing or according to customer's special requirements.
3.Delivery Detail:The specific delivery time depends on the items and the quantity.

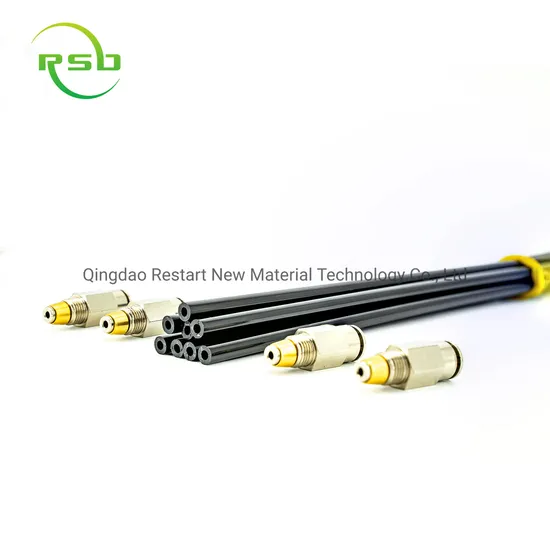

Product picture
Company Profile
Qingdao Restart New Material Technology Co., Ltd is a famous company producing Lubrication Hose and TPU Hose. We not only provide customers with high-reliability and cost-effective standard products, but also continuously develop new products according to the latest requirements of customers to meet the special application requirements of various industries.
Our strict process and high quality's raw material make it to pass ISO9001,ISO45001and ISO14001 system certification. The company maintains extensive cooperation with WANHUA , DuPont, Arkema and other international leading material suppliers, and has maintained the strongest competitiveness in new material development and new technology applications.
FAQ
Q1:Are you factory or trading company?
A: We are factory, specialized in hose. Welcome to visit our factory.
Q2: What is your terms of packing?
A: Plastic woven belt, Carton Packaging, Wooden Cases or Your Request
Q3:What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4:What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6:Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
