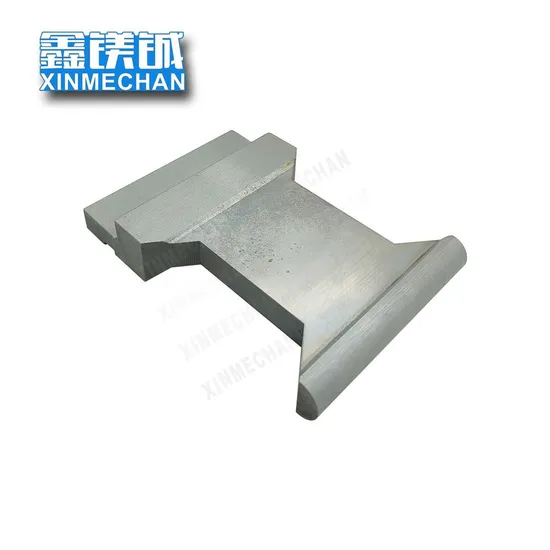

Gooseneck Punch Top Press Brake Tools Sheet Metal Punch Upper Dies on Sale

Product Description

Product Description
Use the right tools to achieve perfect bending results when air bending, embossing, and 3-point bending. XINMECHAN's extensive range of high-quality press brake tools meets various bending demands. Our bending tools are capable of unleashing the full potential of the machine's features, press brake tooling is available for machines from 120KN to 30000KN, to ensure that your parts are always bent with utmost precision.
Advantages:
1. Fast and easy to configure tool lengths
2. Extremely accurate, fast, safe, and flexible
3. Suitable for all press brakes and all bending applications
4. For extreme precision and bending performance
5. Very high workload capacity and maximum durability
6. Very high-quality finish
7. Provides maximum long-term performanceMaterial and Hardness:
Optimum materials:
1. 42CrMo4, tempered to 1100 - 1200 N/mm2
2. C45, tempered to 800 - 850 N/mm2
3. C45, 650 - 800 N/mm²
Hardness: 52 - 55 HRC

Surface Coating and Refinement:
1. No tool contamination while bending zink-coated sheets and aluminum
2. No ferritic infection at stainless steel
3. Less friction coefficient
4. Higher lifetime
5. Non-corroding
6. Minimized adhesion of material abrasion of the bent part
Product Parameters
Please send us the drawing for accurate shape and size, refer to below picture. The below sizes are for bending tools for some standard models of press brakes, for your reference. We also can make the bending punch/die by custom.

MODEL OF PRESS BRAKE	UPPER DIE (MM)	LOWER DIE(MM)
40T/2000	2000x70x18	2000x55x55
40T/2000	2000x80x18	2000x75x75
40T/2000	2000x90x30	2000x55x55
40T/2000	2000x150x26	2000x55x50
63T/2500	2000x85x28	2500x70x70
63T/2500	2500x150x25	2500x65x65
63T/2500	2500x85x28	2500x55x55
63T/2500	2500x100x20.5	2500x70x70
80T/3200	3200x80x18	3200x95x95
100T/3200	3200x150x26	3200x95x95
100T/3200	3250x86x28	3250x75x75
100T/3200	3200x72x30	3200x100x100
100T/3200	3250x80x25	3250x95x95
100T/3200	3200x85x25	3200x75x75
100T/3200	3200x80x25	3200x95x95
160T/3200	3200x90x56	3200x110x110
160T/4000	4000x80x25	4000x110x110
160T/4000	4000x90x30	4000x110x110
160T/4000	4000x134x34	4000x120x120

These are only some typical sizes. More are available. Please contact us for further information.
OEM service is also available. Just send us the drawing. Our proficient engineers will take care of the rest. Standard mold:
1. When ordering a standard mold, select the mold's shape.
2. Provide the total length, angle, sharp R, die height, etc.
3. The mold that needs to be divided can be divided into dimensions.
The special bending forming mold:
1. Provide the cross-section shape drawing of the product workpiece.
2. Provide bending machine manufacturer, tonnage, length, and other relevant data.
3. Provide product material, plate thickness, and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, and straightness).
5. Provide product materials (for mold test).
6. If there is any difficulty in selecting the mold, please consult us. Certifications

We are constantly involved in technological innovation and technical improvement to supply more advanced products for you. We had implemented the international quality system standards fully. Each process of production and delivery is to the requirements of national and industry standards as well as users' needs strictly. We can guarantee the products our customers received are of superior quality.

Packaging & Shipping




Company Profile
With more than twenty years of experience in manufacturing, XINMECHAN provides press brake tooling of outstanding quality. We select high-quality raw materials and promise a competitive factory price with good performance. Every technical index reaches the international standard. Our press brake tooling has passed the ISO 9001 and CE quality certification. We supply professional before and after-sale service to each piece with a short delivery time and safe packaging.

After Sales Service
Pre-sales services, supply customization:
We provide customers with the best possible process solutions, technical advice, samples to test, model selection, and other consulting service.
In-sale services, provide all aspects of technical support:
We design tailor-made training programs for you, including equipment operation, product maintenance and maintenance, troubleshooting, safety operation, and other aspects of training.
After-sales service is perfectly and timely:
We guarantee 10 hours to respond to customer demand, free maintenance during the warranty period, life-long maintenance, timely provision of spare parts, remote diagnosis, regular visits, and other services.
FAQ
Q1. How to get the most suitable product and best price?
Please tell us what you want, the size/dimension, drawing, applied bending material, raw material, and other information.
Q2. Can you help to design or draw the bending punch/die we need?
Yes, we can, please send us the drawing of your workpieces, applied bending machine details, required raw material, and other information.
Q3: What is your advantage?
1. End manufacturer with competitive price.
2. Different raw materials for you to choose from, we can give professional suggestions to you.
3. Various blades for you to choose from, OEM&ODM are supported.
4. High wear resistance and waterproof.
5. Short delivery time & safe packaging.
Q4: How long is your delivery time?
Generally, it is 3 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to
quantity.

---
