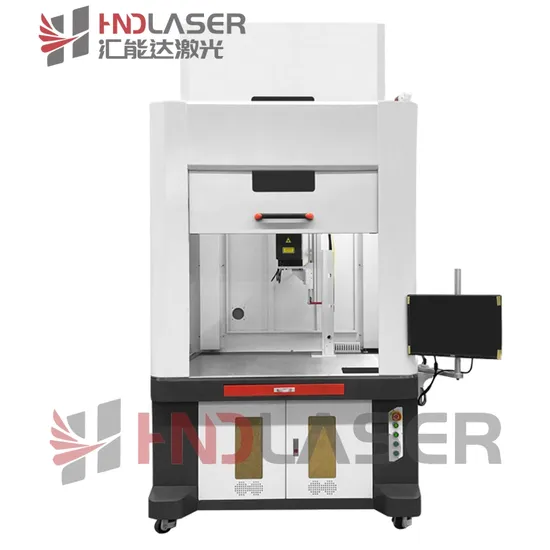

Enclosed Fiber Laser Marking Machine Fiber Laser Engraving Machine for Jewelry Luggage Buttons Glasses Clocks Engraving

Product Description

Large Format 3D Dynamic Fiber Laser Marking Machine
(Can be customized to your needs)
High-power laser engraving system, which can be equipped with a maximum of 4KW laser and a water-cooled 3D galvanometer, can efficiently process large-format products.The commonly used 3D galvanometer has a marking range of 600mm×600mm and a Z-axis adjustable range of 0-150mm. This enables it to engrave in both the negative and positive focal directions, greatly broadening its application areas.
1. Key performance of 3D galvanometer system
Large marking range
600mm×600mm marking range: the commonly used 3D galvanometer system can mark in a range of 600mm×600mm, which is suitable for the processing needs of large-size products.
High-precision control: 3D galvanometer system can realize micron-level control precision to ensure consistent marking results over a wide range.
Z-axis adjustable range
0-150mm Z-axis adjustment: The Z-axis of the galvanometer system is adjustable from 0-150mm, making it possible to mark on material surfaces of different heights. The laser focus position can be automatically adjusted according to changes in the shape and height of the workpiece.
Negative-focus and positive-focus marking: It is possible to engrave both in the negative-focus direction (upward) and in the positive-focus direction (downward), which greatly increases the flexibility and applicability of marking.

NO.	Project	Parameter
1	Model number	HF10XX-3D
2	Laser power	30W/50W/100W/200W (Optional)
3	Laser level	Class IV (IEC 60825-1)
4	Laser type	Pulse Fiber Laser
5	Wavelength	1064nm
6	Marking field	100/150/200/300/400/500/600 (optional)
7	Max. Marking depth	20-200mm
8	Marking speed	≤10000mm/s(optional)
9	Marking line width	0.01-0.2mm
10	Min character size	0.015mm
11	Repeat accuracy	0.01mm
12	Cooling method	Air-cooled/Water-cooled
13	Laser source expected life	>100,000 hours
14	Standard user interface	PC/Touch panel
15	Consumables	No
16	Temperature	0-45ºC
17	Power consumption	1000 W
18	Electrical requirement	L/N/PE 100 - 240 VAC, 50/60 Hz

2. Wide range of applications
Complex curved surface marking
Applied to curved and irregular surfaces: The 3D galvanometer system can automatically adjust the laser focus according to the height change of the curved surface to ensure high-quality marking effect on complex curved surfaces. Suitable for the identification and decoration of complex curved products such as automotive parts, aerospace equipment, etc.
Deep marking
Multi-layer marking: By adjusting the Z axis, the 3D galvanometer system can achieve multi-level deep marking, which is suitable for materials such as metal and stone that require deep engraving.
Efficient processing: High-power laser combined with the efficient scanning capability of the 3D galvanometer can complete deep marking in a short time and improve production efficiency.

3D engraving functions Large-format marking
Assembly line marking
Visual positioning marking
Projection positioning marking
Curved surface marking
Curved surface rotation marking
Relief, 360° engraving
Function customization

Materials		Reaction	Materials		Reaction
Metal	Stainless steel	√√	Plastic	PE	√
	Aluminum	√√		PP	-
	Anodized aluminum	√√		PVC	√√
	Brass	√√		PPR	√
	Coated metal	√√		ABS	√
	Copper	√		PET	-
	Gold, silver, nickel, platinum	√		Nylon	√
	Carbon steel	√√		MPP	-
	Titanium	√√		PC	-
Ceramics	Ceramic	√	Electrical and medical ceramic	Electrical and medical ceramic	√

Exceptional Reaction: √√ Admirable Reaction: √ Unsatisfactory Reaction: -

Application
Advantages & Accessories
Advantages
Non-consumable
Eradicate consumable replacement expenses
Reliant solely on electrical power
A one-time robust investment
Maintenance-free operation
Eco-friendly environment
Ink-free technology
Solvent-free process
Odorless operation
Non-toxic and safe
Non-corrosive materials
Energy-efficient system
Minimally wasteful
Guaranteeing 100% resource utilization
Zero emissions produced
Permanent and durable markings
Precisely controlled indentation depth
Resistant to oxidation effects
No color degradation
Enhancing traceability
Assured safety and reliability


Optional Accessories
Related Type
Focus Areas

Exhibitions and Fairs
Plants and Teams
Certification Display
Certified by a leading third-party organization, our machines come with a reliable warranty service. If you ever require assistance or support, we are perpetually at your service.


Company Information
ZHANGJAGANG HNDLASER TECHNOLOGY CO.,LTD
HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise, funded by HNDLaser established in Zhangjiagang. We seamlessly integrate research, development, production, and application of laser equipment. Our investment portfolio includes Zhangjiagang HND Intelligent Equipment Co. and many other esteemed enterprises.
Through consistent augmentation in annual R&D investment, our products have garnered significant market recognition, ensuring a robust and stable production input across the entire laser industrial chain. HNDLaser is deeply committed to a philosophy of people-first, technological innovation. We steadfastly prioritize innovation and talent development, securing our growing market share and the esteemed recognition of our products.

FAQ
Q1: What is the warranty period like?
A1: During the warranty period, should any main parts (excluding consumables) encounter issues, they will be replaced or repaired at no additional cost to you.
Q2: What payment terms do you accept?
A2: We accept various payment methods including TT, Western Union, Paypal, LC, and Cash, among others.
Q3: Do you provide CE documents and other clearance documents?
A3: Indeed, we provide the original documents. Post-shipment, you will receive the CE document, packing list, commercial invoice, and sales contract for seamless customs clearance.
Q4: If I am unfamiliar with the product usage upon receipt or encounter issues, how should I proceed?
A4: We offer a comprehensive user manual, complete with illustrations and a USB disk for step-by-step learning. Additionally, any updates to the machine will be provided monthly for your ongoing convenience.
Q5:How can I obtain a sample to verify the results?
A5: You are invited to send us a sample, which we will test for you at no charge..
Q6: When will I receive a quote?
A6: Our professional team will respond to your inquiry within an impressive 12-hour timeframe.

---
