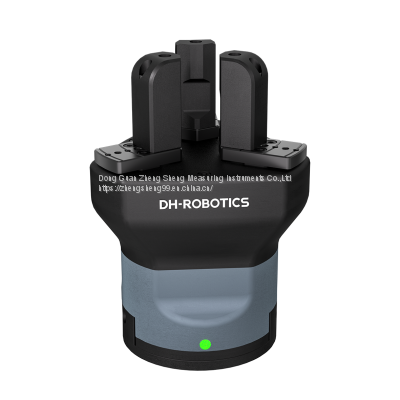

Servo-Electric Grippers CGC-80-10

Product Details

Product Description

Product Description
Product features
1.High performance
2.Long life
3.Three fingers to the heart grasp
Application scenarios
Accurate and stable grasping of cylinder workpiece in automotive parts, automation equipment, precision machining and assembly
Hold power(one side) ：20~80N
Total trip :10mm
Maximum recommended load ：1.5kg
Open/close time : 0.2s/0.2s
Position repetition accuracy : ±0.03mm
Running noise：＜50 dB
The weight of the : 1.5kg
The transmission way ：Rack and pinion + ball bearing linear guide
size : 141mm×103mm×75mm
Runtime environment：
Working voltage ：24V DC±10%
Ratted current ：0.3A
Peak current ：1A
Protection grade ：IP67
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS

---
