Product Details
Product Description
Product Description

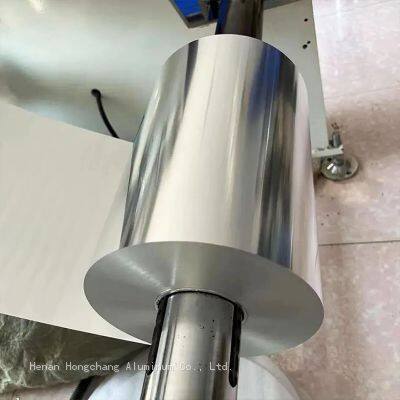

Waterproof aluminum foil is a special aluminum foil material with waterproof, heat-insulating and thermal insulation properties. It is mainly composed of aluminum foil and polyurethane foam. The aluminum foil layer can effectively isolate the entry and exit of air and moisture, while the polyurethane foam plays a role in thermal insulation and prevents the influence of temperature changes and moisture on the material1. This material is widely used in many fields such as construction and cargo packaging due to its excellent performance.
The commonly used alloy numbers of waterproof aluminum foil mainly include 8011, 1100, 3003, etc.
Aluminum foil specifications
Product Name
| Aluminum Foil
|
Shape
| Sheet/Roll
|
Series
| 1000 Series, 2000 Series, 3000 Series, 4000 Series, 5000 Series, 6000 Series, 7000 Series, 8000 Series
|
Material
| 8011, 1235, 1060, 3003, 1100, 1145, etc.
|
Thickness
| 0.005-0.25mm
|
Length
| C
|
Width
| 200-1600mm
|
Brinell hardness
| 20-30HB
|
Coating
| Anti-corrosion coating, UV coating, color coating.
|
Surface
| Single-sided lightweight aluminum foil, double-sided lightweight aluminum foil
|
Classification
| Heavy gauge foil, medium gauge foil, light gauge foil
|
Feature
| Soft texture, good ductility, silvery white luster, waterproof,etc
|
Application
| Packaging, electrolytic capacitors, thermal insulation and other materials
|
Series
| Level
| Element
| Application
|
1000 Series
| 1050, 1060, 1070, 1080, 1085, etc.
| Pure aluminum
| Packaging, construction, vehicles, ships, cosmetics, aluminum gaskets, etc.
|
2000 Series
| 2011, 2014, 2017, 2024, 2025, etc.
| Aluminum-copper alloy
| Aerospace industry, screws
|
3000 Series
| 3003, 3203, 3004, 3104, 3005, etc.
| Aluminum-manganese alloy
| Oil-conducting seamless pipes and cans on aircraft
|
4000 Series
| 4032, 4043, 4A01, etc.
| Aluminum-silicon alloy
| Motor vehicle pistons, cylinders, etc.
|
5000 Series
| 5052, 5005, 5083, 5A05, etc.
| Aluminum-magnesium alloy
| Lawn mower handles, aircraft fuel tank pipes, cars, ships, tank trucks, etc.
|
6000 Series
| 6061, 6063, 6101, 6151, etc.
| Aluminum-magnesium-silicon alloy
| Vehicle parts manufacturing, ships, etc
|
7000 Series
| 7072, 7075, 7050, 7003, etc.
| Aluminum-zinc alloy
| Propellers, aerospace
|
8000 Series
| 8011,8021,8079,etc
| Alloy systems other than the above
| Packaging, medicine, bottle caps, lunch boxes, etc.
|
Features of waterproof aluminum foil:
1. Excellent waterproof performance: The surface of the aluminum foil is specially coated or compositely treated to effectively block moisture penetration.
2. Strong corrosion resistance: Suitable for humid or acidic and alkaline environments.
3. Good barrier performance: Good shielding effect on oxygen, moisture and light.
4. Lightweight and durable: light weight, easy to transport and install, high strength and durability.
5. Environmentally friendly: some aluminum foil products can be recycled to reduce the impact on the environment.
Aluminum foil applications:
Type
| Introduce
|
Air conditioning foil
| Air conditioning foil is a special material used to make air conditioning heat exchanger fins.
|
Packaging foil
| Aluminum foil's moisture barrier, heat insulation and barrier properties make it an ideal packaging material.
|
Decorative foil
| Decorative foil takes advantage of the good coloring properties and high light and heat reflectivity of aluminum foil. It is mainly used for the decoration of buildings and furniture.
|
Cable foil
| Cable foil utilizes the sealing and shielding properties of aluminum foil and has high mechanical properties.
|
Company profile
HONGCHAGN Aluminum is a professional aluminum foil manufacturer with 10 continuous casting production lines, more than 20 other large-scale processing equipment, and an annual output of 200,000 tons. It produces 1-8 series aluminum foils with stable product quality, advanced technology and equipment, and sophisticated production technology. The products are exported to many countries and regions overseas with preferential prices and guaranteed after-sales service.
Packaging and transportation:
Export standard packaging, carton or wooden box, or waterproof paper, or according to customer requirements.
The internal dimensions of the container are as follows:
20ft GP: 5.9m (length) x 2.13m (width) x 2.18m (height) about 24-26CBM
40ft GP: 11.8m (length) x 2.13m (width) x 2.18m (height) about 54CBM
FAQ:
Q1: How to ensure quality?
A1: Factory test certification is provided with shipment, third-party inspection is available
Q2. What are the main products of your company?
A2: Our main products are aluminum, aluminum plate, aluminum foil, aluminum strip, patterned plate, automotive plate, marine grade aluminum plate, household foil, hydrophilic aluminum foil, bottle cap material, etc.
Q3: Where is your factory?
A3: Our company's processing center is located in Xin'an Industrial Assemble Region, Luoyang, Henan Province, China.
Customers from all over the world are very welcome to visit our factory and office.
Q4: What are the advantages of your company?
A4: We have many professionals, technicians, more competitive prices and best after-sales service than other companies.
Q5: Can you provide samples?
A5: Free samples, postage is borne by customers. Customized samples require us to communicate to determine the delivery time.
>>
