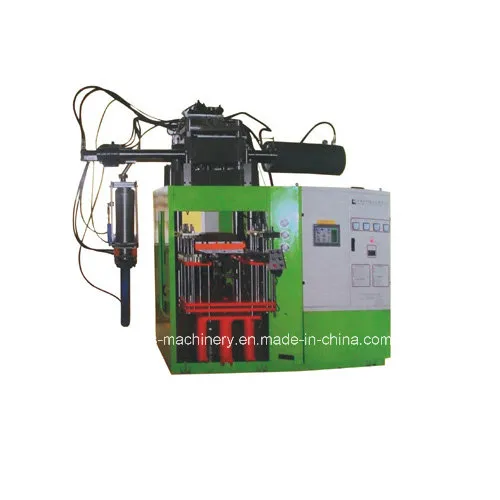

Rubber Injection Molding Machine for Silicone Products (KS200B3)

Product Description

First in first out horizontal silicone injection molding machine, latest design, full automatic, hign speed, hign precision, front open mould style hydraulic molding machine.
Machine main feature:
1. Full-scale oil system
2. Streamlined no dead material back check valve design
3. A full range of computer display control system
4. Precision optical ruler control injection quantity, matching with three-stage injection control
5. With Japan made high-tech infrared safety electric eye
6. Double helical loop temperature control system
7. Multi-stage design to eliminate bubbles during feeding material
8. Can match with cold and hot runner for run material model
9. Silicone large capacity feeding barrel, can feed material 20kg-25kg one-time

Applicable products:
Applied to silicone craft products, electrical insulation products, sex products, medical products, sporting products, cookware.
Parameter:

Model	KSB-200T	KSB-300T	KSB-400T
Injection volume(cc)	2000	2000/3000/4000	3000/4000/5000
Injection speed(cc/min)	5000	5000	5000
Injection Pressre(Mpa)	188	188	164
Clamping force(KN)	2000	3000	3000
Heating plate size(mm)	600*600	700*700	700*800
Mould open stroke(mm)	500	500	600
Max. heatin plate space(mm)	570	570	700
Min. mould tickness(mm)	80	80	120
Electrical power(KW)	15	18	27
Horse power(HP)	15	20	30
Gross weigt(KG)	7000	9000	11000
Machine size(L*W*H mm)	3300*1700*3200	3600*1900*3500	4200*2200*4200

Dongguan City Kesheng machinery Co., Ltd
Rubber machine, silicone material molding machine, injection machine, rubber machinery manufacturers / suppliers in China, providing high-precision rubber injection molding machine, rubber & silicone pressing machine, full automatic high speed molding press and so on.
Machine core parts:
Adopt foreign imported, such as Japan Mitsubishi PLC control system, Germany's Siemens control system, Taiwan PanelMaster HMI, Japan YUKEN oil pump, Taiwan heating pipes, Taiwan Victoria solenoid valves, Denmark TRAFAG pressure sensors, Japan NOK oil seal, Taiwan Tatung motors, Omron thermostat, Germany Busch vacuum pump, Fujitsu and other international brands accessories, stable quality, superior performance, low failure rate.
Main parts instruction for Rubber Injection machine

NO.	Item	Branch/Material	Remarks
1	Motor	Taiwan Tatung	Large torque type, quiet and silent
2	Oil Pump	Japan YUKEN	Collective style circuit design
3	PLC	Germany's Siemens	Independent written, easy to operate
4	LCD touch screen	Germany's Siemens	Clear and intuitive, convenient, easy to operate
5	Heating pipes	Taiwan branch	Nickel-chromium alloy wire, never rust
6	Oil seal	Japan NOK	Wear-resistant, durable, no leakage
7	Solenoid valve	Northman	Controlled fast, long life
8	Other electrical configuration	Germany's Siemens	Performance and stability
9	Thermocouple Module	Germany's Siemens	Using PID correction, temperature uniform distribution, the error value at ± 3 ºC
10	Pressure sensor	Denmark TRAFAG	Conduction pressure accurate, unbiased, and easy to use
11	Heating control system	Taiwan Solid State Relays	temperature uniform distribution, the error value at ± 3 ºC
12	Machine body casting	FCD50 Ductile Iron	Aging passivation, high tensile strength
13	Column	Carbon Steel	Hardness up to HRC55--58
14	Screw barrel	Zhejiang Huaye
15	Proportional flow pressure valve	Japan YUKEN	Specific pressure ratio flow control system, precise control of flow and pressure
16	Digital modules Analog Modules	Germany's Siemens	Can accurately input and output

Dongguan City Kesheng machinery Co., Ltd is located in Dongguan city, Guangdong, China, covers an area of 28000 square meters. Our company was established since 2003 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
Any inquiry please feel free to contact with us, thank you for your attantion!

---
