Single Mode Sc/LC/APC Duplex Plastic Optical Fiber Adapter Mode Field Adaptor Connector

Product Description

Factory Single Mode Sc/LC/APC Duplex Plastic Optical Fiber Adapter Mode Field Adaptor ConnectorProduct Description
Features:High transmission efficiencyHigh powerHigh stability and reliabilityAvailable in customizable configurationsApplications:High-power lasersFiber amplifiersSpecifications:A Mode Field Adaptor (MFA) is a crucial optical component used in fiber optic communication systems. Its primary role is to facilitate the connection between optical fibers with different mode field diameters, which can be a challenge due to variations in fiber design and manufacturing.
Key Functions:
Mode Field Matching: The MFA is designed to match the mode field diameter of the fiber core with the surrounding cladding or the core of another fiber. This helps in minimizing loss and signal distortion when connecting fibers with different core sizes.
Reducing Signal Loss: By ensuring a smooth transition between fibers with different mode field diameters, the MFA helps reduce splice loss and improve overall system performance.
Improving Performance: It enhances the efficiency of optical communication systems by maintaining optimal signal quality and minimizing back reflections.
Applications:
Telecommunications: Used in long-distance and high-speed fiber optic networks to ensure high-quality data transmission.Data Centers: Facilitates efficient and reliable connections between different types of optical fibers.Research and Development: Employed in experimental setups where different types of fibers are used.

Parameter		Spec
Port Configuration		1x1
Signal Wavelength		1030~ 1080nm or 1450~ 1600nm
SMA Optical Fiber		6/ 125	10/ 125	10/ 125	10/ 125	20/250
LMA Optical Fiber		10/ 125	20/ 125	25/250	20/400	30/250
Signal Insert loss	Forward Path	0 .3 dB	0.4dB	0.5dB	0 .5 dB	0.2dB
	Backward Path	0 .3 dB	0 .5 dB	0 .7 dB	0 .7 dB	0.2dB
Total Processing Power		As Specified
Polarization Extinction Ratio (PM Fiber Type)		≥18dB
Polarization Dependent Loss(Single Mode Fiber Type)		≤0. 15dB
Return loss		≥45dB
Package Dimensions		D1, D2, D3, D4, D5, D6, D7
Operating temperature		-5~+70
Storage temperature		-40~+85

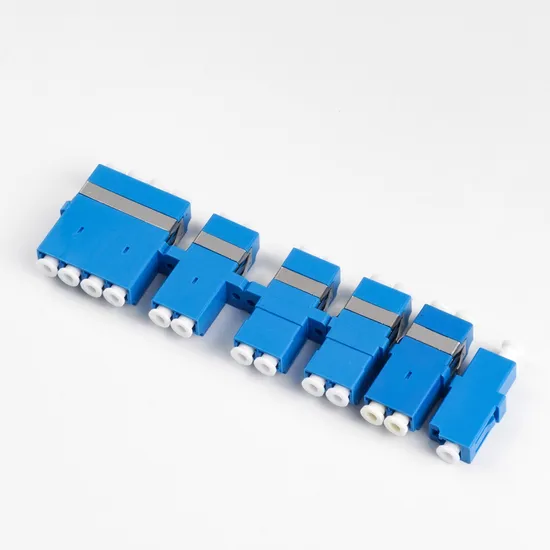

Detailed Photos
Company Profile
Shenzhen Kerns Tech Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipment.The main products of Kerns Tech include optical combiner, isolator, circulator, optical devices, fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in laser equipment, fiber optic equipment, laboratory research, instruments, telecommunications, broadband, broadcast, CATV and network industry.All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
Product Parameters
Beam Combiners
Utilizing unique fiber drawing and packaging technology to achieve pump efficiency of over 93%, supporting various fibers and packaging sizes to meet customized needs.
Couplers / Splitters
Offering low insertion loss and high directivity coupling solutions, supporting stable operation of optical communication systems and optical testing systems.
Isolators
Particularly suitable for test instruments, Raman fiber lasers, ultrafast fiber lasers, etc., characterized by low insertion loss, high return loss, and high isolation.
Packaging & Shipping
FAQ
Q1: What is the warranty?
A1: Our products typically come with a one-year warranty. During the warranty period, if the product fails due to manufacturing defects or material issues, we will provide repair or replacement services free of charge. The warranty does not cover damage caused by misuse, mishandling, or failure to follow the operating instructions.
Q2: What is the packaging?
A2: Our products are packaged with professional shockproof and protective materials to ensure they are not damaged during transportation. Typically, the packaging includes anti-static bags, foam padding, and sturdy cardboard boxes for multiple layers of protection. For special products, we can also provide customized packaging according to customer requirements.
Q3: How do I know if this product is exactly what I need?
A3: Before purchasing, you can determine if the product meets your needs through the following ways:
Product Manual: Carefully read the product manual and technical specifications.Technical Support Consultation: Contact our technical support team with your specific application requirements, and we will recommend suitable products for you.Sample Testing: For bulk purchases, we can provide samples for you to test and evaluate.Customer Reviews: Check other customers' reviews and feedback.Q4: How do you maintain quality? A4: We ensure product quality through the following methods:
Strict Raw Material Selection: Only select high-quality raw material suppliers.Advanced Production Equipment: Use modern, precise production equipment and technology.Quality Control System: Establish a comprehensive quality control system, with strict quality inspections at each stage from raw material intake to product dispatch.Professional Team: Employ experienced engineers and technicians responsible for production and quality management.Continuous Improvement: Continuously collect customer feedback to improve product design and manufacturing processes, enhancing product performance and reliability.

---
