Skid Proof Heat Shrink Tube

Product Description

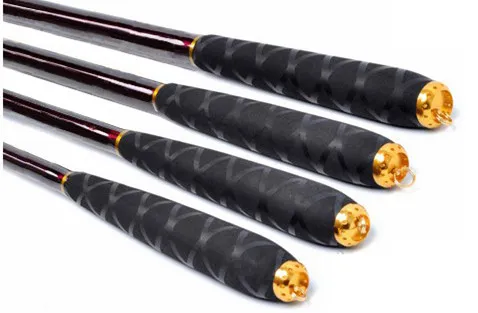

Non-Slip Heat Shrink Tube is a kind of high polymer alloy produced by adopting high grade polymer, scientific material component allocations and mechanical mixture. It has undergone the process of extrusion and molding, cross-link through electronic accelerator and surface treatment after expansion. The product boasts the advantages of environment-friendliness, good flexibility, skidproof, good appearance, fast shrinkage and stable performance. It is used in protect with tripod, unipod. Also used in fishing tackles, sports fittings, health equipment and commodities, etc.
Main Property:
1) Operating Temperature: -55 ~ 105ºC.
2) Shrinking Temperature: Start at 70ºC, and shrunk totally at 105 or 110ºC.
3) Shrinking ratio: 2: 1, longitudinal Shrinking ratio:≤8%;
4) Tensile Strength: 10.4Mpa; Elongatin: 200%;
5) Good flexibility, skidproof, good appearance and fast shrinkage;
6) Convenient: Can be shrunk by oven, heat gun, hair drier or hot water easily;
7) Color: Black, Red, Yellow, Green, Blue.
Application:

Size(mm)	As Supplied (mm)		After Recovered(mm)		Standard Packing (M/piece)
	Original I. D.	Average Thickness	Max I. D.	Wall Thickness
Φ 10	≥ 10	0.45± 0.15	5.5	0.85± 0.15	1.0
Φ 15	≥ 15	0.45± 0.15	8.0	0.85± 0.15	1.0
Φ 20	≥ 20	0.50± 0.15	11.0	0.90± 0.15	0.8/1.0
Φ 22	≥ 22	0.50± 0.15	12.5	0.90± 0.15	0.8/1.0
Φ 25	≥ 25	0.50± 0.15	14.5	1.00± 0.15	0.8/1.0
Φ 28	≥ 28	0.50± 0.15	15.5	1.00± 0.15	0.8/1.0
Φ 30	≥ 30	0.60± 0.15	17.5	1.20± 0.15	1.0
Φ 35	≥ 35	0.60± 0.15	20.0	1.20± 0.15	1.0
Φ 40	≥ 40	0.60± 0.15	23.0	1.20± 0.15	1.0
Φ 45	≥ 45	0.65± 0.15	25.0	1.20± 0.15	1.0
Φ 50	≥ 50	0.65± 0.15	28.0	1.20± 0.15	1.0

---
