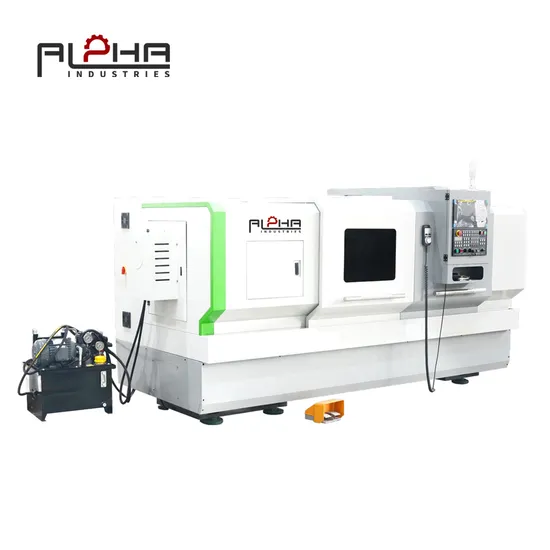

Fabricado En China Metal Conventional Ck-L Series Smart Lathe Machine Tool

Product Description

Product Description
Fabricado En China Metal Conventional CK-L SERIES SMART Lathe Machine Tool Product Parameters

Basic Info.
Model NO.	Ck-L Series		GuideRail	/
Tool Holder	/		Power Source	Electric
Controlling Mode	CNC		Automatic Grade	Automatic
Setting Mode	/		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Trademark	Alpha industries		Origin	China
Production Capacity	100 Sets/Year

Model No.	Unit	CK6150L	CK6166L	CK6180L
Scope of work
Maximum turning diameter on the bed	mm	500	660	800
Maximum turning diameter through the skateboard	mm	290	420	560
Maximum centerdistance	mm	1000/1500/2000/3000
Xaxis (lateral)maximum travel	mm	295	295	400
Maximum Z-axis (transverse)travel	mm	1000/150/2000/3000	1000/1500/2000	1000/1500/2000
Width of guide	mm	400
X/Z ball screw		2505/4010
Fast move	m/min	X-direction 6m/min,Z-direction 8m/min
Machining accuracy		IT6-IT7
Principal axis
Spindle head type		A2-8	A2-11/C11	A2-11/C11
Taper of spindle inner hole/spindle through hole	mm	Metric system 90#/Φ82mm/φ105mm
Spindle speed	rpm	45-260,140-800, 280-1600	12-100/70-300/260-1200
Chuck size	mm	Three jaw chuck Φ250mm/320mm
Precision
Positioning accuracy	mm	X-axis (transverse)≤0.015
	mm	Z-axis (transverse)≤0.02
Repeated positioning accuracy	mm	X-axis(transverse)≤0.0075
	mm	Z-axis (transverse)≤0.01
Tool rest
Form/square tool shank specification	mm	4/6/8 Four-station tool rest/25×25mm/32×32mm
Tailstock
Tailstock sleeve diameter/stroke	mm	75/150
Tail seat center taper hole		MT5#
Electric machine
Main motor power	KW	7.5	11	11
X/Z axis motor power	NM	6/8	6/10	6/10
Machineweight/Overall dimensions(1 m machine)	KG/mm	2600KG/ 2900X1700X1800mm	2800KG/2900×1700×2000/3000mm
Machine weight/Overall dimensions (1.5m machine)	KG/mm	2700KG/ 3400X1700X1800mm	2900KG/3400×1700×2000//3100mm
Machine weight/Overall dimensions(2 m machine)	KG/mm	3200KG/ 4000X1700X1800mm	3500KG/4000×1700×2000/3700mm
Machine weight/Overall dimensions (3 m machine)	KG/mm	3600KG/ 4500X1700X1800mm	3800KG/4500×1700×2000/4000mm

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
