Automated Pet Glass Syrup Bottle Liquid Dosing and Capping Machine

Product Description

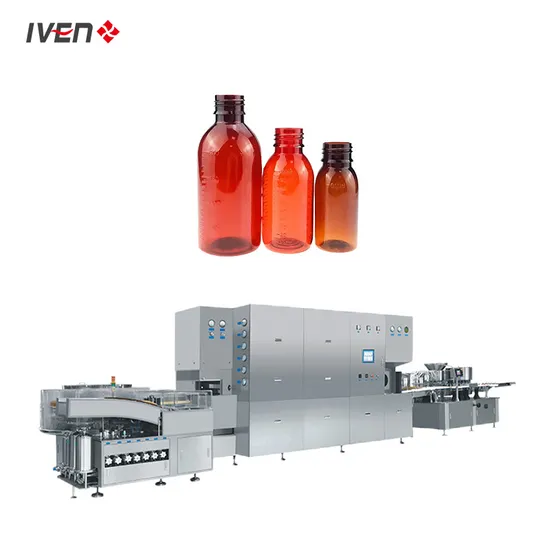

Automated PET Glass Syrup Bottle Liquid Dosing and Capping Machine
Product DescriptionSyrup Washing Filling Capping Machine includes syrup bottle air /ultrasonic washing, dry syrup filling or liquid syrup filling and capping machine. It is integrate design, one machine can wash, fill and screw bottle in one machine, reduce investment and production cost. The whole machine is with very compact structure, small occupying area, and less operator. We can equip with bottle handing and labeling machine also for the complete line.
ApplicationFor dry syrup or liquid syrup production, 50-500ml bottle.
Production ProceduresSyrup Bottle Handling and Washing
According to plastic bottle or glass bottle, we equip with Ionic air washing or Ultrasonic washing station, to make sure most suitable technology for syrup bottle washing.
Syrup filling
After bottle washing, bottle go to filling station. Dry powder adopt screw filling, and liquid use peristaltic pump, high filling precision, and frequency control, production speed arbitrary regulation, automatic counting. It has auto-stop function, no bottle no filling.
Screw capping
With cap handling
Optional drying, stoppering station
High qualified capping rate
IVEN Syrup Washing Filling Capping Machine Advantages
1.Customized capacity from 3000-12000bottles/hour.
2.High automation, reasonable operation process and optimization of integration.
3.Suitable for different size syrup, dry and liquid types.
4.Intelligent & Humanized Operation System. Humanized design for each station , PLC +HMI control.
5.No bottle no filling, no bottle no capping.
6.High filling precision and qualified rate.
Machine ConfigurationProduct Parameters

Applicable Specs. S	50-500ml
Working Speed	3000-12000pcs/hour
Filling Method and Accuracy	Dry powder: screw filling, ±2% Liquid solution: peristaltic pump filling, ±2%
Capping Method	Threaded Capping
Power	380V/50HZ, 19KW
Speed controlling	Frequency control
Space Occupation	According to different capacity
*** Note: As products are constantly updated, please contact us for latest specifications. ***
