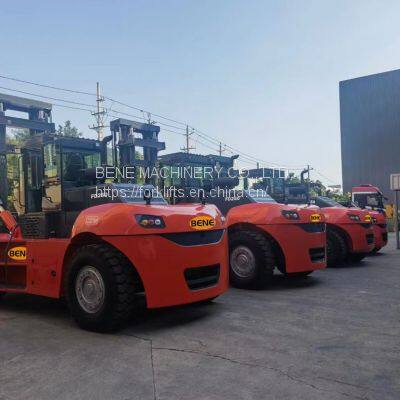

Chinse 25 ton heavy duty forklift VS FD250 25 ton container forklift with ZF transmission

Product Details

Product Description

Product Description
Chinse 25 ton heavy duty forklift VS HANGCHA 25 ton container forklift with ZF transmission
1.Adopt CUMMINS diesel engine, which features sufficient power, large torque, strong overload capacity, reliable work, and low oil consumption
2.High strength solid steel gantry fork fixed with fork with regulator.
3.Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.
4.Fitted with handy steer with maximum freedom, provides steering conveniences.
5.An ideal operation friendly in the engineering and industrial sectors.
6.Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability
7.The gearbox and torque converter are of reliable quality and stable performance.
8.The transmission mode is hydraulic transmission (flexible transmission), being stable and convenient to operate.
9.Brake system is famous brand product, with reliable brake performance.

Item		Specification		Unit
General	1	Model			FD250
	2	Power Type/model			Diesel
	3	Rated Capacity		Kg	25000
	4	Load Center		mm	1200
Dimensions	5	Lift Height		mm	4000
	6	Fork Size(LxWxT)		mm	2400×280×100
	7	Fork Spread(outside)(Min./Max)		mm	970/2640
	8	Mast Tilt Angle(F/R)		deg	6°/12°
	9	Fork Overhang		mm	970
	10		Length without forks	mm	6550
	11		Overall Width	mm	3060
	12		Mast Lowered Height	mm	3970
	13		Overhead Guard Height	mm	3550
	14	Outer turning Radius		mm	6200
Performance	15	Speed(Unload/Load)	Travel	km/h	30/26
	16		Lifting	mm/s	300
	17	Max.gradeability(Load)		%	20
	18	Max.drawbar pull(Load)		KN	180
	19	service Weight		kg	32000
Wheels&Tires	20	Tire	Front		4×14.00-24-24PR
	21		Rear		2×14.00-24-20PR
	22	Tread	Front	mm	2200
	23		Rear	mm	2350
	24	Wheelbase		mm	4250
	25	Ground Clearance(Under mast)		mm	360
Power & Transmission	26	Battery	Voltage/Capacity(5HR)	VA/h	2X12/120
	27	Engine	Model		WP10G220
	28		Manufacture		WEICHAI
	29		Rated Output	Kw	162
	30		Rated Torque	N.m	786
	31		No.Of Cyinder		6
	32		Bore*stroke	mm	114/135
	33		Displacement	L	8.3
	34	Transmission	Type		Fluid Torque Converter
	35		StageFWD/RVS		2/1
	36	Operating Pressute		Mpa	19

---
