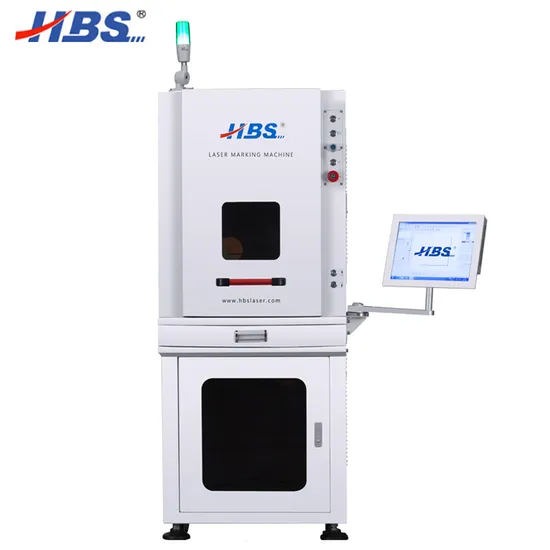

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Enclosed Laser Marking Machine

Product Description

Hot Sale 20W 30W 50W 100W Fiber Laser Marking Enclosed Laser Marking Machine
I Product Introduction
GQ 20F are designed with enormous space, which make it easier for putting in large workpiece and install needed making accessories. Despite its expanded machine body, GQ 20F can still be integrate into your assembly line by simply detaching the side doors, and our engineers will help you with all the installation process, make sure GQ 20F fits in perfectly.
II Technical Parameter:

Laser Wavelength	1060nm	Beam Quality	<1.5
Laser Repetition	≤100KHz	Standard Marking Area	110mm x 110mm
Making Depth	≤1.5mm(Can be Adjustable)	Marking Speed	≤12000mm/s
Min. Line Width	0.01mm	Min. Character Size	0.05mm
Repetition Precision	±0.001mm	Power Consumption	≤500W
Cooling method	Air cooled	Power Supply	220V/50Hz/10A

III Product Features:
Low power consumption with no consumables.
Low product depreciation cost.
Long-time maintenance-free.
Long working time, over 100,000 hours.
Operate with batteries or supply from automobile cigarette lighter in case of power failure.
The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above.
IV Product Application:
For metal as well as plastic product.
Widely used in the marking of gold, silver diamond and other jewelries, sanitary tools,
food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging,
medical equipments, watches & glassware, automotive parts, plastic & paper material,
electronic hardware, gold bullion, and also in other areas such as aviation,
aircraft manufacturing, projectile body and explosion proof materials.
V Exhibition: METAV 2018
VI Packaging Details:
Package: 1230x860x1820 mm
Gross weight: 220kg
VII Company Info:
Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.
HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!

---
