Basic Info.
Certification
ISO 9001:2000, ISO 9001:2008, CE, CCC
Usage
Cargo And Passenger
Fuel Economical Consumption
≤ 3.4 L/100km
Baattery
12V/32ah Maintenance-Free Lead-Acid Battery
Specification
L4200mm*W1450mm*H1580mm
Trademark
CHANGJIANG or OEM
Production Capacity
60000piece/Year
Packaging & Delivery
Package Size
400.00cm * 150.00cm * 105.00cm
Package Gross Weight
640.000kg
Product Description

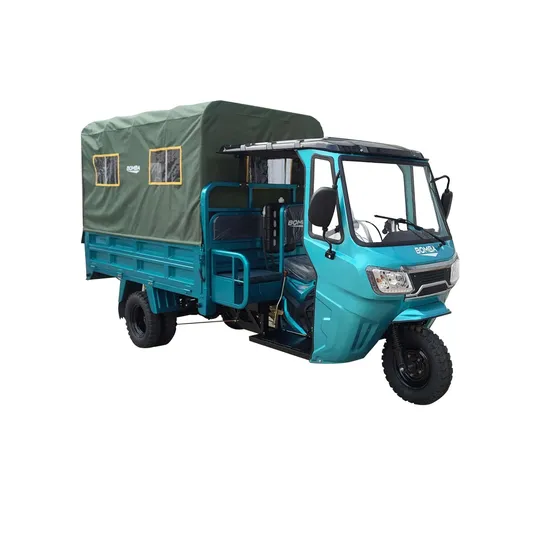

Detailed Photos
Product Parameters
| parameter status | Specification Description |
| Engine Model | Single-cylinder four-stroke Water-cooled |
| Start Method | Electric start,/foot start |
| Engine Shift Mode | 5-digit international file |
| Magneto Model | 12v/18 class |
| Engine displacement | 250cc |
| Max Power (kw/rpm) | 11.5kw/7000 rpm |
| Max Torque (N.m/rpm) | 18N.m/5500 N.m/rpm |
| Vehicle size(mm) | L4200*W1450*H1580(mm) |
| Cargo size(mm) | L2300*W1400*H640(mm) |
| Standard | With driver's roof, spare tire, jack, |
| Wheelbase (mm) | 2900(mm) |
| Wheelbase (mm) | 1260(mm) |
| Min Ground Clearance (mm) | 280(mm) |
| Maximum speed | 75Km/h |
| Rated load | ≤ 1500 kg |
| Fuel Tank Capacity (Fuel Type) | 15.8 L (Gasoline) |
| Fuel Economical consumption | ≤ 3.4 L/100km |
| Frame | 40*80 keel double bone (thickness 3.0mm), 40*100 rear flat frame (thickness 2.5mm) |
| Leaf Spring | 5+4/60*12(mm), 20KG/rack |
| Front Shock | One-armed mountain road style shock absorption |
| Rear axle | Full afterburner rear axle, 70mm axle tube, speed ratio 10:31 |
| Tire Model | Front 5.00-12, rear double wheel 5.00-12 |
| Standard | Luxury shed, radio, reversing camera, fan, dome light, electric wiper, spare tire, jack |
| Drive mode | Shaft drive |
| Braking method | Front and rear drum brakes |
| Baattery | 12V/32Ah Maintenance-free lead-acid battery |
| Can Choose Colour | red, blue, black, white, yellow, green |
| Loading method: | CKD parts |
| Loading Q'ty | 28pcs/40'HG |
Company Profile
Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.
The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,
Its brand"CHANGJIANG"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.
The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.
The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.
Welcome the friend all over the world come to visit us and cooperation! Packaging & Shipping
>>
