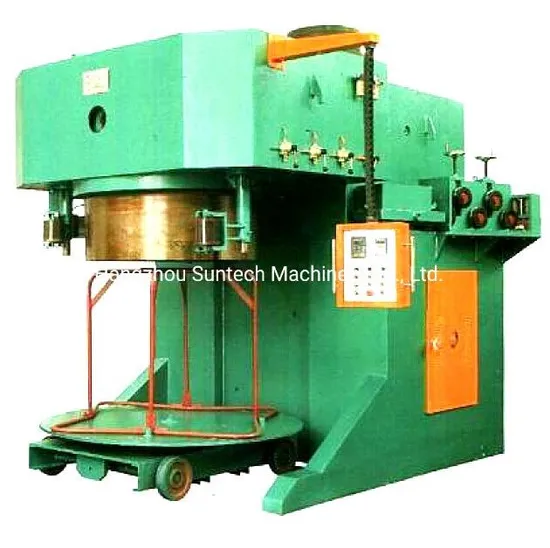

Suntech High Quality Inverted Headstand Fastener Wire Drawing Machine

US$10,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DL1000
Type
Headstand Metal Drawing Machine
Usage
Wire
Metal Material
Steel
Outlet Diameter
<20mm
Max.Inlet Wire Dia.
22mm
Block Dia.
1200mm
Max. Number of Block
1
Certification
ISO
Condition
New
Transport Package
Pallet
Specification
HD1200
Trademark
SUNTECHMACH
Origin
China
HS Code
8463300000
Production Capacity
100 Sets/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg

Product Description



Product Description
1. Structure:
The equipment consists of main reduction box,die casing,wheel frame,sash brace and
electrical control system.The spinning drawing blocks are driven by motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body.The gear pair are lubricated with oil.

2. Usage:
The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as welding wire mesh factor, auto fastener factory etc.
Product Parameters
3. Inverted Vertical Wire Drawing Machine
Model unit LDD-1400 LDD-1200 LDD-1000 LDD-700 LDD-600
Diameter of capstan mm 1400 1200 1000 800 600
Max. diameter of inlet wire mm 40 30-25 20-16 16-8 12-6.5
Drawing speed m/min 0-28 0-48 0-60 0-80 0-120
Average compression ratio % 25-10 25-10 25-10 30-25 30
Motor power KW 110 75-55 55-45 45-37 30-22
Take-up weight KG 2300 2300 2300 1000-2000 800-1500
