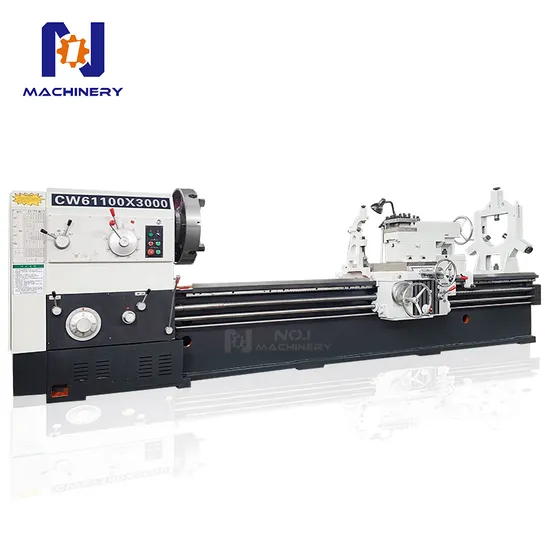

Heavy Duty Lathe Lathe 3 Meters Cw61100 High Precision Hydraulic Chuck Lathe Machine for Metal

Product Description

Product Description
The CW Series Heavy-Duty Lathe stands out for its robust design and precision capabilities. Key features include:
Heavy-Duty Construction: Built with high-quality cast iron, it ensures rigidity and stability, minimizing vibrations for precise machining.
High Power and Torque: Equipped with a powerful motor, it handles heavy workpieces and deep cuts effortlessly.
Large Swing Over Bed: Accommodates oversized components, making it ideal for industries like aerospace and energy.
Advanced Control System: Offers user-friendly CNC or manual controls, ensuring flexibility and ease of operation.
Precision and Reliability: High-precision spindle bearings and a rigid bed design deliver superior accuracy and consistent performance.
Product Parameters

Model		Unit	CW61100	CW61100
Maximum rotation diameter on the bed		mm	1000	1000
Rotation diameter on the tool holder		mm	720	680
Maximum workpiece length		mm	1500/2000/3000	1500/2000/3000
Spindle through hole diameter		mm	105	105
Spindle front end taper hole diameter and center taper		mm	120,1:20	120,MT6
Spindle speed series and range		r/min	7.5-1000 (18kinds)	18,5.4-720
Vertical feed level and range	Range 1:1	mm/r	0.06-1.52(64kinds)	0.06-1.52(64kinds)
	Range 16:1	mm/r	1.6-24.3(64kinds)	1.6-24.3(64kinds)
Micro feed range with exchange gear		mm/r	0.06-0.912	0.06-0.912
Ratio of lateral feed to longitudinal feed		-	1/2	1/2
Machine tool lead screw pitch		mm	12	12
Thread type and range	Metric thread	mm	1-240 (50kinds)	1-240 (50kinds)
	British thread	tpi	14-1 (26kinds)	14-1 (26kinds)
	Module thread	mm	0.5-120 (53kinds)	0.5-120 (53kinds)
	Diameter pitch thread	tpi	28-1 (24kinds)	28-1 (24kinds)
Maximum horizontal stroke of lower tool rest		mm	420	390
Maximum stroke of upper tool rest		mm	200	200
Stroke of end sleeve		mm	250	250
Tip of end sleeve		-	MT6	MT6
Width and quenching hardness of bed rail		mm	550mm RC52	600mm RC52
Hardness of bed rail		RC	52	52
Main motor power		kW	11	11
Fast motor power		kW	1.1	1.1
Cooling pump motor power		kW	0.9	0.9
Lathe weight		kg	3800/4200/5000	4500/4700/5500
Machine outline dimensions (length × width × height)		mm	3600/4100/5100*1530*1870	3600/4200/5200*1500*1700

Detailed Photos
MANUAL CHUCK
The standard version is equipped with a 3-jaw or 4-jaw manual chuck. Customers can choose chucks of different sizes according to their requirements. A hydraulic chuck
FOUR-STATION TOOL HOLDER
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
QUENCHED TAILSTOCK
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
STEADY REST
Steady rest are optional accessories, need extra cost.
