Precision Woodworking Spc Flooring Making Equipment Mixing Machine

Product Description

Equipment parameters

No.	Item	Parameters
1	Working Condition	380V/3P/50Hz (or customization)
2	Processing Material	PVC, Calcium powder mixed material
3	Mixer Unit Model	SRL-W1000/3000
4	Mixer negative pressure transfer speed	1.75T~2T/h
5	Vacuum pump power	11KW
6	(Hot Mixer)Total volume	1000L
7	Effective volume	700L
8	The largest feeding amount at one time	350-400
9	Spindle speed	0-600r/min
10	Mixing time/batch	10-12min
11	Discharging method	Pneumatic
12	Heating method	Friction Heat
13	Material temperature	110ºC
14	Discharge compressed air pressure	0.49Mpa
15	Feeding holes	4*Ø300
16	Straight diameter of the discharge port	φ250
17	Temperature measurement method	K-type thermocouple-temperature controller
18	Motor	160kw inverter control
20	(Cold Mixer)Total volume	3000L
21	Effective volume	2000L
22	The largest feeding amount at one time	500KG
23	Output	2000KG/h
24	Spindle speed	60r/min
25	Mixing time/batch	8-10min
26	Heating method	Water cooling
27	Material temperature	50ºC
28	Temperature mesurement method	K-type thermocouple-temperature controller
29	Compressed air pressure for discharging	More than 0.49Mpa
30	Number of feeding holes	φ300
31	Motor	30kw
32	Raw material storage bin	3 m³
33	Mixer feeding method	Vacuum feeder
34	Storage bin feeding method	Screw feeder

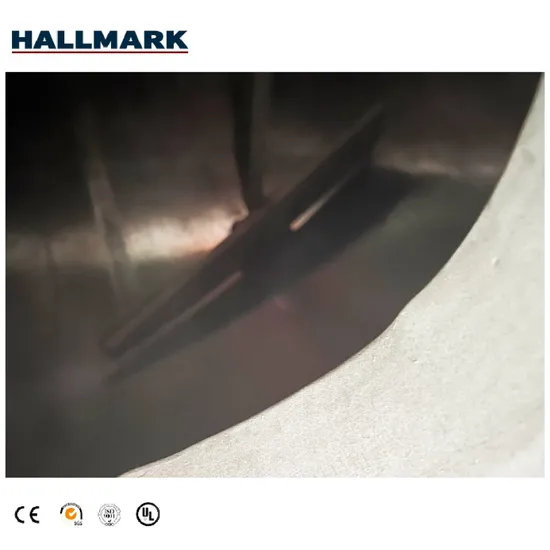

Product Description Mixing Machine for SPC Flooring Production Line The PVC mixer unit is for mixing PVC powder, CaCO3 and other additives. This equipment is widely used in PVC
sheet production and profile production.The high speed PVC mixing machine is composed of plastic mixer (hot mixer),
cooling mixer and control cabinet. It will guarantee the mixer could use for long time under the high friction.The mixing
blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material
leakage. Equipment details list
About Us HALLMARK INTERNATIONAL GROUP LIMITED HallMark is a professional manufacturer in flooring industry with 15 years experience,have own factory and richexperience.Products are sold to more than 50 countries around the world,suchas Russia, Turkey, Egypt, Algeria,
South Africa,Iran,India,Malaysia,Vietnam.
The main products of our company are laminated flooring and SPC flooring production line, and othernon-standard
customized equipment in the construction/wall panel/furniture industry.We can not only provide the above production
lines, but also provide a complete set of solutions and technical consulting services.
We provide one-stop supply and service for you ,from the raw material to machine design ,production,installation,commissioning,staff training, and after-sales service,also provide the turnkey solution. To provide customers with high-quality products,reasonable prices,timely and professional services to meet the various needs of
customers. HallMark firmly believes that transaction is not the end, but the beginning of service.
Packing and delivery
Certifications
Exhibition experience
FAQ 1. Rich experience and professional design
We have 15 years experience in flooring industry,also has many years exporting experience. Each equipment
location,passage will be designed reasonably to meet safety production.
2. Competitive price
HallMark has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese
market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the
installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer
questions within 8 hours. 4. One-stop solution
HallMark provide one-stop service, including market analysis and professional technical consultation,whole SPC
flooring production line, raw materials ,equipment installation, personnel training,Professional after-sales service
team,Renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management
system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production
status.
6. Customized
HallMark's engineer team will design the layout according to customer's factory space and production requirements.

---
