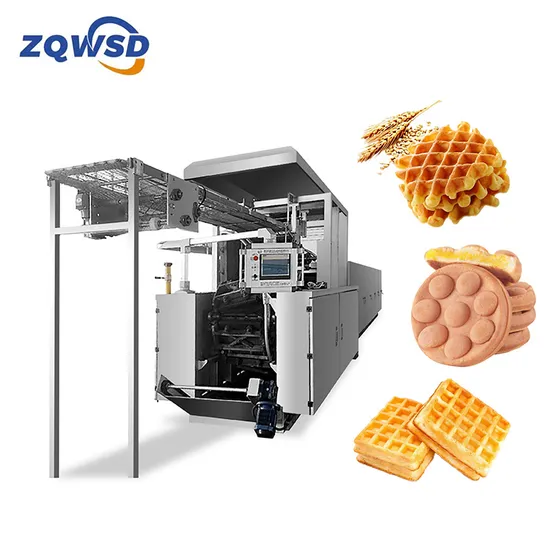

Factory Energy Saving Automatic Wafer Production Line Soft Waffle Machine Biscuit Equipment

Product Description

Wafer Biscuit Production Line

The whole line consists of:

NO.	Machine Name	Quantity (set)
1	Automatic Tunnel Baking Oven	1
2	Sheet Receiver	1
3	Cooling Machine	1
4	Sheet Picking machine	1
5	Cream Spreading machine	1
6	Cooling Cabinet	1
7	Laminating Machine	1
8	Cutting Machine	1
9	Wafer Batter Mixer	1
10	Cream mixer	1
11	Smashing machine	1
12	Electric Control Cupboard	1

Descriptions :
1. Automatic wafer baking oven:Equiped with Touch-screen and programmed by Siemens . PLC Software ,this unit is of electruc power or LPG,LNG to generate the heat energy to make wafer the wafer biscuit.
2. The equipment is easy to operate which with automatic temperature control ,lighting ,making mixer ,blowing ,sheet splicing to finish the baking process


Main Technical Parameter of Baking Oven:

No. of Heating Plates	27, 33, 45, 51, 57, 63, 69, 75 and so on
Baking Plates Size	470x325mm
Patterns of plates	2.5x2.5x0.9mm or 3.0x3.0x0.9mm
Output	up to 6~40 sheets/min
Thick of the biscuit	2.0mm~5.0mm
Inside Baking	Cleaning device
Dimension	6000x1620x2200mm

1. Material: Shell adopts 304 Stainless Steel, Siemens of Mitsubishi to control, SKF high temperature bearing, SEW Motor, Italy Buring Systerms.
2. Material of Baking Plates: Gray Cast Iron,Special Steel ,Copper.
3. Baking Plates temperature adjustable: Normal temperature to 200 °C
4. Inside Baking Cleaning device

Prefect After-sales
1. one year guarantee
2. our technical staff will install the machine fo the client when the machine arrive the clients' place
3. we will help the client solve the machine problem in the future time

Soft Waffle MAKING MACHINE Function:
1. Baking Oven is very important equipment in the waffle biscuit production line, the waffle baking system use gas for heating of the baking plates , the function of the baking oven is fully automatic from spreading batter on the plates through until baked waffle biscuits come out of the oven. 2. It can bake wide range of shape and patterns, also we can design new patterns in according to the clients' requirement . Baking is even and produces good quality waffle biscuits for next procedure.
3. In PLC there is PID controller which is used for controlling the temperature of the baking plates automatically.
With many advantages:
1. Reliable performance,stable operation, convenient maintenance, long working life.
2. All motor have the starting current protection and thermal overload protection, it is very easy operation for the worker.
3. The very important is high demoulding rate finished sheet rate of no less than 98%. Machines'material comply with food hygiene standard, all parts which is connected with food are adopt 304 stainless steel, except special parts.
4. After the waffle finished baking, the Needle hook machine (Needle hook cake system) rolls to the conveyor to complete the process of making the waffle biscuits.

Production Line Series:
Packing&Delivery
Package:Packed in Film
20'GP/40'GP/40'HQ
Standard packing in container for seaworthy

Shipping:
By sea or by land.
Shipping way will depend on the destination and the weight of the goods.
FAQ
1. Ask: Are you a manufacture/factory?
Answer: Yes. We have more than 15 years of experience, we are quite professional in processing wafer production line.
2. Ask: How about the guarantee of your machine?
Answer:Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
3. Ask: We are not in China, how can you ship machines to us ?
Answer: Do not worry about shipment.We can help you to arrange shipment for you by Sea, by Train / Truck. If you have agent in China, welcome to your agent to come to us to pick up cargo if you like.
4. Ask: How should I do if meet some trouble while using?
Answer: We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
5. Ask: How do you make your price?
Answer: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
6. Ask: How long it will take to make the machine?
Answer: We make delivery the machine within40-80days.
7.Ask: What information should l let you know if I want a precise quotation?
Answer: 1.Which product you are interested in?
2.What kind of efficiency are you looking for?
Zhaoqing City WanShunDa Foodstuff Machinery Manufacture Co., Ltd
Add: No,23 Dongsheng Road, District, Jindu Industrial Park, Gaoyao, Zhaoqing City, Guangdong, China

---
