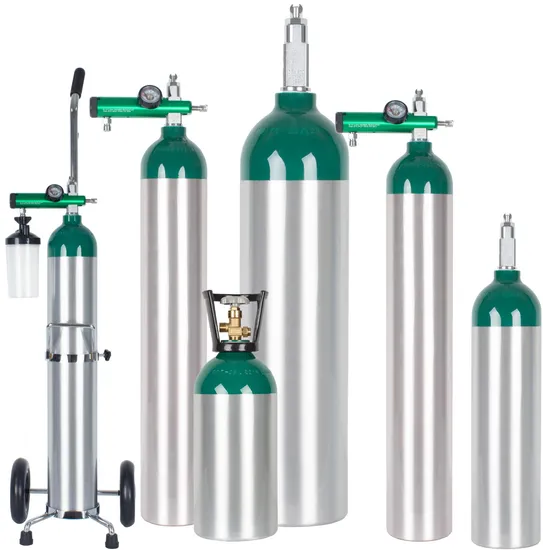

Aluminium Medical Gas Use Aluminum Oxygen Cylinder

US$18.00-52.00 50 piece (MOQ)

Basic Info.

Model NO.
1.7L-0L
Material
Alloy
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Standard
BS 5045-8
Test Pressure
250bar
Work Pressure
169.3bar
Wall Thickness
4.4mm-6.02
Water Capacity
2.1L-10L
Height
330-750mm
Net Weight
1.8-7.4 Kg
Certificate
PED/DOT/Tped/Type Approval of TUV
Diameter
111mm-203mm
Transport Package
Carton and Pallet
Specification
111mm, 140mm, 152mm
Trademark
RUIYING
Origin
China
HS Code
8424901
Production Capacity
80000/Year

Product Description

Products Description

All the products will be inspected by TUV auditor and be with TUV inspection certificate.
ISO 7866 Seamless Aluminum Alloy Gas Cylinder
No. Type Outside diameter(mm) Working pressure (Bar) Test
pressure (Bar)		 Material
Bottom Type		 Design wall thickness(mm) Water Capacity(L) Height (mm) Weight (kg)
Certificate
1 60-0.3-250 60 166.7 250 AA6061 H 3.26 0.3 190 0.35 TPED
2 60-0.4-250 0.4 235 0.43
3 60-0.5-250 0.5 280 0.52
4 60-0.6-250 0.6 330 0.60
5 60-0.7-250 0.7 380 0.68
6 60-0.8-250 0.8 425 0.77
7 111-2.0-250 111 166.7 250 AA6061 H 6.02 2.0 340 2.5 TPED
8 111-2.5-250 2.5 405 2.9
9 111-3.0-250 3.0 475 3.3
10 111-3.5-250 3.5 545 3.7
11 111-4.0-250 4.0 610 4.1
12 111-4.5-250 4.5 680 4.5
13 117-2.0-250 117 166.7 250 AA6061 H 6.34 2.0 320 2.6 TPED
14 117-2.5-250 2.5 380 3.0
15 117-3.0-250 3.0 440 3.4
16 117-3.5-250 3.5 500 3.8
17 117-4.0-250 4.0 560 4.2
18 117-4.5-250 4.5 620 4.5
19 140-3.0-250 140 166.7 250 AA6061 H 7.59 3.0 335 4.1 TPED
20 140-4.0-250 4.0 420 4.9
21 140-5.0-250 5.0 505 5.7
22 140-6.0-250 6.0 590 6.5
23 140-6.5-250 6.5 635 6.9
24 140-7.0-250 7.0 675 7.3
25 152-5.0-250 152 166.7 250 AA6061 H 8.24 5.0 450 6.1 TPED
26 152-6.0-250 6.0 520 6.9
27 152-6.7-250 6.7 570 7.4
28 152-7.5-250 7.5 630 8.0
29 152-8.0-250 8.0 665 8.4
30 152-10.0-250 10.0 810 10.1
31 159-5.0-250 159 166.7 250 AA6061 H 8.62 5.0 415 6.2 TPED
32 159-6.0-250 6.0 480 6.9
33 159-7.0-250 7.0 545 7.6
34 159-7.5-250 7.5 580 8.0
35 159-8.0-250 8.0 615 8.5
36 159-10.0-250 10.0 745 10.0
37 203-8.0-250 203 166.7 250 AA6061 H 11.0 8.0 420 10.5 TPED
38 203-10.0-250 10.0 500 11.9
39 203-12.0-250 12.0 580 13.4
40 203-13.4-250 13.4 635 14.3
41 203-15.0-250 15.0 700 15.5
42 203-20.0-250 20.0 905 19.5
No. Type Outside diameter(mm) Working pressure (Bar) Test
pressure (Bar)		 Material
Bottom Type		 Design wall thickness(mm) Water Capacity(L) Height (mm) Weight (kg)
Certificate
43 111-1.0-310.5 111 207 310.5 AA6061 H 7.59 1.0 220 2.1 TPED
44 111-2.0-310.5 2.0 360 3.1
45 111-2.5-310.5 2.5 430 3.6
46 111-3.0-310.5 3.0 500 4.1
47 111-3.5-310.5 3.5 570 4.6
48 111-4.0-310.5 4.0 640 5.0
49 152-4.0-310.5 152 207 310.5 AA6061 H 10.39 4.0 400 6.3 TPED
50 152-5.0-310.5 5.0 475 7.3
51 152-6.0-310.5 6.0 550 8.2
52 152-7.0-310.5 7.0 625 9.2
53 152-8.0-310.5 8.0 700 10.2
54 152-10.0-310.5 10.0 850 12.2
55 185-5.0-310.5 185 207 310.5 AA6061 H 12.64 5.0 355 8.5 TPED
56 185-8.0-310.5 8.0 505 11.3
57 185-11.0-310.5 11.0 655 14.2
58 185-11.1-310.5 11.1 660 14.3
59 185-12.0-310.5 12.0 705 15.2
60 185-15.0-310.5 15.0 855 18.1
61 185-8.0-310.5 203 207 310.5 AA6061 H 13.87 8.0 445 12.5 TPED
62 185-11.0-310.5 11.0 570 15.5
63 185-11.1-310.5 11.1 575 15.6
64 185-12.0-310.5 12.0 615 16.5
65 185-15.0-310.5 15.0 740 19.4
66 185-18.0-310.5 18.0 870 22.4

DOT-3AL Seamless Aluminum Alloy Gas Cylinder
No. Type Outside diameter(mm) Working pressure (Bar) Test
pressure (Bar)		 Material
Bottom Type		 Design wall thickness(mm) Water Capacity(L) Height (mm) Weight (kg)
Certificate
1 133-3.0-124.1
5.24-183-1800		 133
5.24in		 124.1
1800PSI		 206.9
3000PSI		 AA6061 H 5.47
0.215in		 3.0
183in3		 340
13.4in		 2.9
6.4lbs		 DOT
2 133-3.4-124.1
5.24-207-1800		 3.4
207in3		 375
14.8in		 3.1
6.8lbs
3 133-4.0-124.1
5.24-244-1800		 4.0
244in3		 430
16.9in		 3.7
8.2lbs
4 175-5.0-124.1
6.89-305-1800		 175
6.89in		 124.1
1800PSI		 206.9
3000PSI		 AA6061 H 7.19
0.283in		 5.0
305in3		 345
13.6in		 5.1
11.2lbs		 DOT
5 175-6.7-124.1
6.89-408-1800		 6.7
408in3		 430
16.9in		 6.0
13.2lbs
6 175-6.8-124.1
6.89-415-1800		 6.8
415in3		 435
17.1in		 6.1
13.4lbs
7 175-10.03-124.1
6.89-612-1800		 10.03
612in3		 600
23.6in		 7.9
17.4lbs
8 175-10.2-124.1
6.89-622-1800		 10.2
622in3		 610
24.0in		 8.2
18.1lbs
9 203-10.0-124.1
8.0-610-1800		 203
8.0in		 124.1
1800PSI		 206.9
3000PSI		 AA6061 H 8.34
0.328in		 10.0
610in3		 475
18.7in		 9.4
20.7lbs		 DOT
10 203-13.4-124.1
8.0-818-1800		 13.4
818in3		 605
23.8in		 11.2
24.7lbs
11 203-14.0-124.1
8.0-854-1800		 14.0
854in3		 630
24.8in		 11.6
25.6lbs
No. Type Outside diameter(mm) Working pressure (Bar) Test
pressure (Bar)		 Material
Bottom Type		 Design wall thickness(mm) Water Capacity(L) Height (mm) Weight (kg)
Certificate
1 111-1.7-124.1 111
4.37in		 124.1
1800PSI		 206.9
3000PSI		 AA6061 H 4.55
0.179in		 1.7 270 1.65 DOT
2 111-1.8-124.1 1.8 285 1.7
3 111-1.9-124.1 1.9 295 1.75
4 111-2.0-124.1 2.0 310 1.8
5 111-2.1-124.1 2.1 320 1.85
6 111-2.2-124.1 2.2 335 1.9
7 111-2.3-124.1 2.3 345 2.0
8 111-2.4-124.1 2.4 360 2.05
9 111-2.5-124.1 2.5 370 2.1
10 111-2.7-124.1 2.7 400 2.2
11 111-2.8-124.1 2.8 415 2.3
12 111-3.0-124.1 3.0 435 2.4
13 111-1.4-13.9 111
4.37in		 139
2015PSI		 231.7
3359PSI		 AA6061 H 5.11
0.201in		 1.4 240 1.6 DOT
14 111-1.7-13.9 1.7 280 1.8
15 111-1.9-13.9 1.9 305 1.9
16 111-2.0-13.9 2.0 320 2.0
17 111-2.8-13.9 2.8 420 2.5
18 111-2.9-13.9 2.9 435 2.55
19 111-3.0-13.9 3.0 445 2.6
20 111-3.5-13.9 3.5 510 3.0
21 111-3.7-13.9 3.7 535 3.1
22 111-3.9-13.9 3.9 560 3.2
23 111-4.0-13.9 4.0 575 3.3
24 111-4.5-13.9 4.5 635 3.5
25 111-4.6-13.9 4.6 650 3.6
26 111-4.7-13.9 4.7 665 3.7
27 133-2.8-15.28 133
5.24in		 152.8
2216PSI		 254.8
3694PSI		 AA6061 H 6.74
0.265in		 2.8 320 3.1 DOT
28 133-3.0-15.28 3.0 345 3.2
29 133-3.2-15.28 3.2 365 3.4
30 133-3.4-15.28 3.4 385 3.5
31 133-3.5-15.28 3.5 395 3.7
32 133-3.9-15.28 3.9 430 3.9
33 133-4.0-15.28 4.0 440 4.0
34 133-4.2-15.28 4.2 460 4.1
35 133-4.5-15.28 4.5 485 4.3
36 133-4.6-15.28 4.6 495 4.4
37 133-4.7-15.28 4.7 505 4.5
38 133-5.0-15.28 5.0 530 4.7
39 175-4.5-15.28 175
6.89in		 152.8
2216PSI		 254.8
3694PSI		 AA6061 H 8.85
0.348in		 4.5 330 5.5 DOT
40 175-4.7-15.28 4.7 340 5.7
41 175-5.0-15.28 5.0 360 5.9
42 175-5.5-15.28 5.5 385 6.2
43 175-5.8-15.28 5.8 400 6.4
44 175-5.9-15.28 5.9 405 6.5
45 175-6.0-15.28 6.0 410 6.6
46 175-6.2-15.28 6.2 420 6.7
47 175-6.5-15.28 6.5 435 6.9
48 175-6.7-15.28 6.7 450 7.0
49 175-7.0-15.28 7.0 465 7.3
50 175-7.5-15.28 7.5 490 7.6
51 185-10.5-15.28 185
7.283in		 152.8
2216PSI		 254.7
3694PSI		 AA6061 H 9.35
0.368in		 10.5 590 10.3 DOT
52 185-10.7-15.28 10.7 600 10.5
53 185-13.0-15.28 13.0 700 12.2
54 185-15.3-15.28 15.3 820 13.8
55 185-15.7-15.28 15.7 835 14.0

Product quality assurance:
Raw material spectrom analysis, hardness test,yield strength test, tensile strength test,nondestructive examination(NDE)(magnetic powder inspection,ultrasonic flaw detection),hytrostatic test,burst test,impact test.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Company Profile
Shaoxing Ruiying High Pressure Vessel Co., Ltd. was one professional steel and aluminum gas cylinders manufacturer with the ability of research, development, sales and production capacity of 700000 pcs per year.

As an ISO-9001 certified manufacturer, products obtained PED/TPED CE certification, American DOT certification, German TUV safety certification and Australian market certification.
Customer satisfaction is our highest goal, quality is the most important principle guiding our work. Automated production equipment, professional inspection tools guarantee the safe and reliable product performance.
We will continue to enhance our competitive advantages with our "Excellent quality; diligent pursuit" philosophy through a position of strength, innovation, and partnership with our customers.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
company culture
Cooperation and win-win make business more friendly and sustainable, caring and teaching for employees to experience love and responsibility.
FAQ

1.Min order quantity?
Q:What's your min order quantity?
A:100PCS
2.Delivery Time?
Q: What is the delivery time of the gas cylinders ?
A: 10Days to 30Days once deposit received and specifications confirmed about the cylinder.
3.Certification?
Q:What certificates do you provide for gas cylinders?
A:We are authorised by PED/ISO/ DOT/ GB / TPED standards.
4.Sample?
Q: How can I get the sample? What's the lead time?
A: Samples could be sent within two week, the lead time is 15-30 days.
5.Technical consultation ?
Q:Can you provide some techincal questions?
A:We would like to supply helpful solutions for all kinds of technical consultation,project design and market application.
