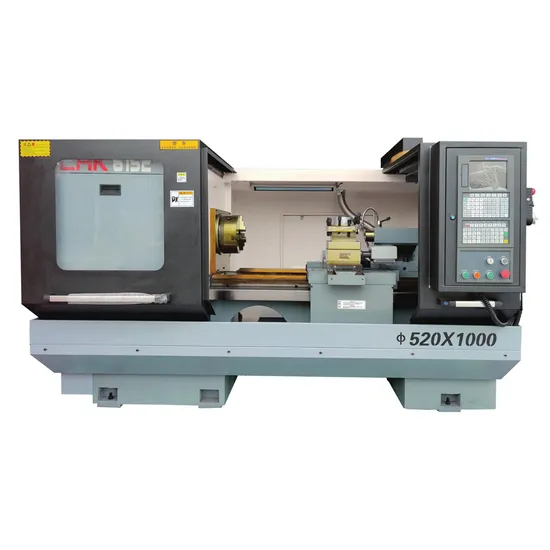

Automatic Hydraulic Chuck CNC Lathe Ck6152 Factory Price

Product Description

Product Description

Main features of CK6152 high-precision CNC horizontal bench lathe:
1. Precision ground and hardened bed.
2. The main shaft is supported by precision roller bearings.
3. The spindle box gear is made of high-quality steel and has been ground and quenched.
4. The gear lever is easy to operate.
5. Provides removable clearance for larger diameter workpieces.
6. The easy-to-operate gearbox has multiple feeding and thread cutting functions.
7. Integral tripod or split tripod are available

Specification

Maximum rotation diameter of the bed	520mm
Maximum rotation diameter on the skateboard	320mm
Spindle bore diameter	82mm
Tool holder form	4-position(192*192)
Tailstock sleeve hole taper	MT5
Tailstock sleeve diameter	75mm
chuck	250mm
Spindle speed	2kinds 65-1600 r/min
Tailstock sleeve travel	150mm
Bed rail width	440mm
Spindle taper	90(1:20)
main motor power	7.5Kw
X/Z axis motor torque	5/7.5Nm
X/Z axis movement speed	5/10
X stroke	290mm
X/Z axis positioning accuracy	0.01/0.01mm
X/Z axis repeat positioning accuracy	0.005/0.014mm
Maximum processing length	890/1390/1890/2890mm

Performance characteristics
1. This machine adopts a new type of weighted overall lathe, which is sufficiently rigid, stable in operation, and smooth in chip removal. The width of the machine tool guide rail is 600mm.
2. Advanced structural design ensures that the machine tool has high processing accuracy and long-term accuracy maintenance.
3. The machine bed, headstock, bed saddle, tailstock and other key parts are processed using advanced equipment.
4. The machine tool can provide a variety of configurations according to customer requirements (such as different spindles, tool holders, chucks, tailstocks, etc.) to meet the needs of users for processing various parts.
5. The spindle lubrication adopts an external mailbox structure. Through the special structural design of the box cover, the traditional point-to-point lubrication is upgraded to shower-type lubrication, which provides more complete lubrication. It lubricates the bearings and gears while taking away most of the heat in the box, reducing the spindle The effect of heat on the overall accuracy of the head box.

CW6180B
Maximum rotation diameter of bed	800mm
Maximum rotation diameter on the skateboard	480mm
Maximum cutting diameter	800mm
Rail width	600mm
Spindle speed	5.4-720r/min
main motor power	11Kw
Spindle taper hole specifications	120(1:20)
Tailstock sleeve diameter/stroke	120/250mm
Maximum processing length	1500/2000/3000/4000/5000/6000/8000
Maximum cutting length	1350/1850/2850/3850/4850/5850/7850

Company Profile
Packaging & Shipping
Certificate display
Visiting customers
FAQ
1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.2. Can we pay by L/C or others ? Yes ,you can make the payment by T/T , l/C etc.3. What is your payment terms ? 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.4.When is the delivery time? The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.5. How to handle the warranty period? During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.6.Can your company send the technical personnel to our company and direct our workers for free? When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD50.00-100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
