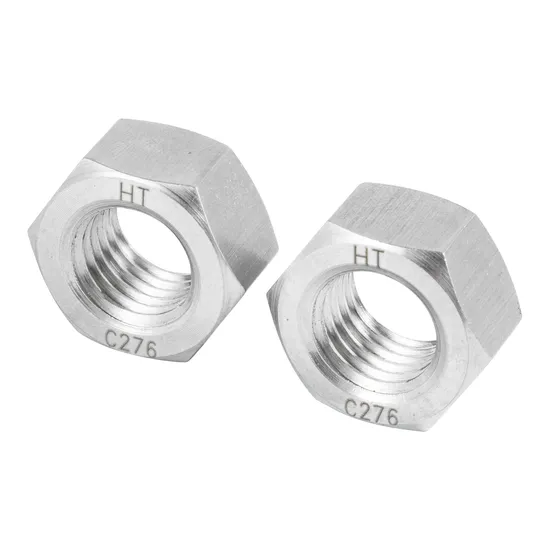

Hastelloy C276 2.4819 N10276 DIN934 Hex Nut

Product Description

Our Advantages Our C276 fastener products have been used in Power plant project at South Korea,India,Netherland,Oman,Vietnam and so on Since the year of 2009 !
If you select us,you will enjoy the service by our 18 years experienced sales!
We seek:
Professional service!
Good quality products!
Trustworthy factory!
We are professional Stainless steel &Nickle alloy fasteners factory.We can produce Bolt , Nut, Washer, stud bolt, and special parts according to the drawing with stainless steel,nickel alloy steel.
We have stock fasteners of SS304&SS316&SS316L&duplex and some Hastelloy C276.We don't specify MOQ to many grade products.We supply the 100% sorting service.We accept small packing service. Product Description
Product Parameters

Name	Hastelloy C276,UNS N10276,2.4819 Hex Nut
Standard	DIN934 DIN439,IS04032,ASME B 18.2.1,JIS B1180
Size Range	M5-MM64 or non-standard as requested
Finish	Bright&Clean
Marking	HT&FST or customizationHastelloy
Material	C276/N10276/2.4819
Grade	Grade 80
Certificates	EN10204-3.1B
Non-standards	OEM is available, according to drawing or samples
Samples	Samples available
Package	Bulk in box and then in cartons, then on palletsor according to customers requirement.
Payment	T/TWestern Union

Similar brand

UNS	Trademark	W.Nr
N10276	HastelloyC276	2.4819

Chemical Composition of Hastelloy C-276 Round Steel

Alloy	%	Ni	Cr	Mo	Fe	W	Co	C	Mn	Si	V	P	S
C276	Min.	Bal	14.5	15	4	3
	Min.		16.5	17	7	4.5	2.5	0.01	1	0.08	0.35	0.04	0.03

Physical Properties of Hastelloy C-276 Round Steel

Density	8.9g/cm3
Melting point	1325-1370 ºC

Minimum mechanical properties of Hastelloy C-276 round steel alloy at room temperature

Alloy state	Tensile strength Rm N/mm2	Yield strength RP0.2 N/mm2	Elongation rate A5%
Solid state	690	283	40

Hastelloy C276, known by its UNS N10276 designation, is a versatile and highly sought-after nickel-molybdenum-chromium alloy. In this comprehensive guide, we will delve into its chemical composition, explore its remarkable properties, and shed light on its wide range of applications across various industries. Additionally, we will discuss its exceptional resistance to corrosion, and the essential aspects of fabrication and heat treatment. Chemical Composition: Hastelloy C276 primarily consists of the following key elements: Nickel (Ni): The primary component, providing a strong base for the alloy's exceptional performance. Molybdenum (Mo): Enhances corrosion resistance, particularly in reducing environments. Chromium (Cr): Contributes to the alloy's resistance to oxidizing agents like chlorides and oxidizing acids. Iron (Fe): An essential element, which when present in controlled amounts, maintains the required mechanical properties. Tungsten (W) and Cobalt (Co): Elements that further strengthen the alloy and provide stability against crevice corrosion. Properties: Hastelloy C276 boasts several remarkable properties that make it an ideal choice for challenging environments: Corrosion Resistance: Its outstanding resistance to a wide range of aggressive media, including strong acids, chlorides, and seawater, sets it apart from conventional alloys. High Temperature Resistance: The alloy retains its mechanical strength and integrity even at elevated temperatures, making it suitable for high-temperature applications. Excellent Fabricability: Hastelloy C276 can be easily formed, welded, and machined, providing flexibility during fabrication processes. Good Mechanical Properties: The alloy exhibits excellent tensile and impact strength, further enhancing its suitability for various industrial applications. Applications: Due to its exceptional properties, Hastelloy C276 finds applications in diverse industries, including: Chemical Processing: It is extensively used in handling corrosive chemicals and acidic solutions. Petrochemical Industry: The alloy is employed in reactor vessels, heat exchangers, and other equipment exposed to aggressive media. Oil and Gas: In offshore drilling environments and sour gas wells, Hastelloy C276 ensures reliable performance. Pollution Control: It plays a vital role in the construction of flue gas desulfurization systems and other pollution control equipment. Pharmaceutical and Pulp & Paper: Its corrosion resistance makes it valuable in pharmaceutical production and pulp and paper processing. Resistance to Corrosion: Hastelloy C276 stands out for its exceptional resistance to both uniform and localized corrosion. It maintains its integrity in aggressive environments, where other materials might fail. The alloy's resistance to pitting, crevice corrosion, and stress corrosion cracking makes it highly reliable, especially in chloride-rich conditions. Fabrication and Heat Treatment: Hastelloy C276 offers ease of fabrication, allowing it to be formed into various shapes using standard techniques. Weldability is excellent, and the alloy can be joined using common welding processes like TIG and MIG welding. To achieve the desired properties, post-weld heat treatment is recommended. Conclusion: Hastelloy C276 is a remarkable nickel-based alloy that excels in demanding environments, thanks to its exceptional properties and resistance to corrosion. Its wide range of applications across industries underscores its versatility and reliability. Whether in chemical processing, petrochemicals, or other challenging settings, Hastelloy C276 Pipe continues to prove its worth, ensuring the integrity and longevity of critical equipment.

---
