Testing Equipment New Pattern Long Life P860 Series Oxygen and Nitrogen Analyzer

Product Description

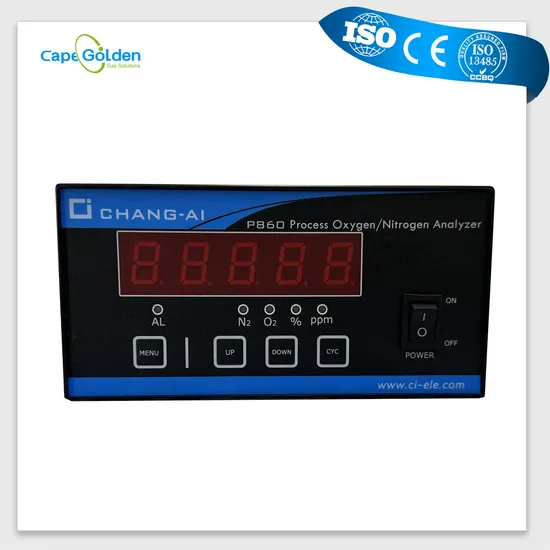

Product Description P860 series analyzer is the online intelligent measurement instrument, which adopting advanced ion current oxygen sensor with single chip technology. N2%=100%-O2%. It has been widely used in the fields of nitrogen separation from air, fertilizer, petrochemicals and biological fermentation.
Detailed Photos
Product Parameters Features
. New pattern long-life conversion ion current tester with fast response and high sensitivity
. N2 or O2 concentration display
. Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life
. Setting alarm value freely
. High precision, automatic temperature compensation, eliminating the impact of environmental temperature

Technical Specifications

Monitor: Five-digital dynamic LED monitor, visible display window: 90mm×25mm
Measure Range: 10ppm~21%, 100ppm~21%, 1000ppm~21% O2
Measure Mode: Air in-flowing or convection diffusing
Sample Gas Flow: 150~300ml/mim
Accuracy: ±2% F.S
Response Time: 90% of FS reading ≤20 seconds
Ambient Temp.: -10ºC~+50ºC
Ambient Humidity: <80%RH
Stability: <±1%.FS (168h)
Signal Output: 4~20mA
Power Supply: 220±10% VAC, 50/60Hz, the power loss ≤6VA
Sensor Life: 20000 hours at 25ºC and 1 atm
Warranty: 12 months analyzer; 12 months sensor
Weight: 1kg
Appearance Dimension: 160mm×80mm×176mm (W×H×D)
Opening Size: 151mm×75mm
Model

No.	Model	Measurement range
1	P860-3O	21.0%~1000ppm	O2
2	P860-4O	21.00%~100ppm	O2
3	P860-5O	21.000%~10ppm	O2
4	P860-3N	79.0%~99.9%	N2
5	P860-4N	79.00%~99.99%	N2
6	P860-5N	79.000%~99.999%	N2

FAQ
Order knowledge
Measure range
Tested gas pressure
Gas composition and impurity

---
