Product Application

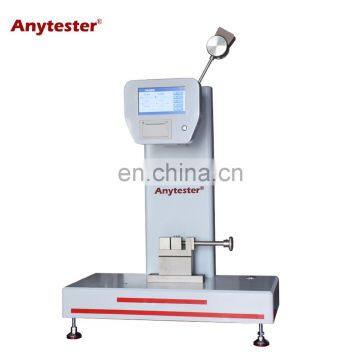

HY4252D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc.
SPECIFICATIONS FOR HY4252D DIGITAL IZOD IMPACT TESTER
|
Model
| HY4252DA
| HY4252DB
|
Impact velocity
| 3.5m/s
|
Impact energy
| 2.75J, 5.5J
| 11J, 22J
|
Impact center distance
| 335mm
|
Pendulum angle
| 150°
|
Distance between striking edge and top surface of jaw
| 22.0mm±0.2mm
|
Corner radius of striking edge
| R=0.8mm±0.2mm
|
Power supply
| AC220V, 50Hz
|
Dimensions
| 700×350×850mm
|
Weight
| 120kg
|
Details & Features
Touch Screen Control
> Large LCD display
> Touch screen control make the operate simple
> Modularization design make after sale service easy
Modularization Design
> English and Chinese language changeable
> Remote control for software update anytime
> Historical date date query and print available
> Test report can be output and store on PC
High Quality Material
> Building in mini printer
> Reserved port for Stylus printer
> Historical date can be printed
High quality material
> High quality stainless steel make the machine long life
> Good machinery technology perform nice appearance
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Certifications
Packing & Delivery
Packaging
|
Size
| 85 (L) * 51 (W) * 94 (D)
|
Weight
| 10Kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
FOB
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
CIF
|
L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
West Union
|
Amount lower than 5000usd
|
West Union
|
Delivery Time
| 7~10days after receiving payment for one container
|
