0.5-1mm Cocoa Bean Impact Mill Stainless Steel 304 Grinding Equipment Pulverizer

Product Description

Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We are professional manufacturer of mixing machine,grinding machine,drying machine and other customized machines,we accept OEM,ODM.
Products Description

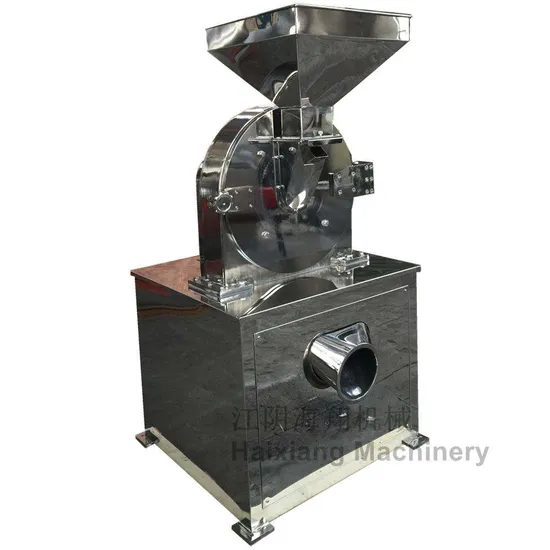

Model B Universal Grinder
Main Application:
Model B Universal Grinder is used in the industries of pharmaceutics,chemical,food and etc.
Operating Principle:
By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth
and impact among the material.The machine is designed according to GMP standard and made of stainless steel 304.The advantages of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.
Technical Parameter:

Model	Capacity (kg/h)	Grinding Speed (RPM)	Motor Power(KW)	Feeding Fineness(mm)	Discharge Fineness (mesh)	Overall size(mm)	Weight(kg)
15B	10-50	6000	2.2	6	12-120	550*450*850	85
20B	60-150	4500	4	6	12-120	550*600*1250	330
30B	100-300	3800	5.5	6	12-120	600*700*1450	600
40B	160-500	3400	7.5	10	12-120	800*900*1550	900
60B	300-1000	2800	15	12	12-120	900*900*1880	1200
80B	400-2000	2000	22	12	12-120	1100*950*1960	1800
100B	500-3000	1500	30	12	12-120	1350*1000*2100	2000

Additional configuration:
1.material:all stainless steel/contact parts stainless steel/carbon steel or other.
2.dust collector type:easy dust collector or pulse dust collector
3.grinding knife type:hammer type.knife type,turbine type.active type.knife type,air cooling type or other. 4. frequency converter:Delta,Siemens,Mitsubishi or other
5.PLC,HMI:Siemens or other.
6.frequency converter:Delta,Siemens,Mitsubishi or other
7.motor: WNM,Siemens,ABB,Sumitomo or other.
8.bearing:HRB,NSK,SFK or other.
9.cooling type:water jacket for bearing and grinding chamber,air cooling system for chamber(-10°C inlet) or Liquid Nitrogen type.
10.Platform: we build the platform for you or we design it and you build it locally.
11.other machines: including packing machine, bucket elevator, Sieve, screw conveyor and so on.
Customizing according to client's specific requirement
FAQ
1.what's your raw material?do you know the density and packing density of your raw material? for example black pepper,density:580g/L,packing density:450g/L
2.what capcity do you require
for example 300kg/kg
3.what's your industry voltage in your factory?we only accept 3 phase power sullpy.
foe example 380V,50HZ,3PH;220V,60HZ,3PH;we accept customize.
4.what's the material of the grinder do you require?
for example carbon steel,contact parts stainless steel 304,all parts stainless steel 304,contact parts stainless steel 316,Titanium material.
5.how much fine of the feeding size and discharge size:
for example black pepper.feeding size:4mm,discharge size:60 mesh.
Details Images



Different kinds of knives for choice
accept customized

Single Machine
easy clean and easy operate
Easy dust collector
have easy dust collector device.it can collect some dust in working.but still have dust in working.
Table type
Discharge at the bottom. it can connect with other machine,for example screw conveyor,vacuum conveyor,sifter,mixer and other.
east operate and clean
Pulse Dust Collector
Pulse Dust collector type won't make any dust in working.
Recommend Products

micro pulverizer
grind material from 10mm to 40-320mesh.no screen design

Vacuum Conveyor
lift material from ground to the machine.

ribbon mixer
machineribbon type mixi
