Product Details
Product Description
Product Description

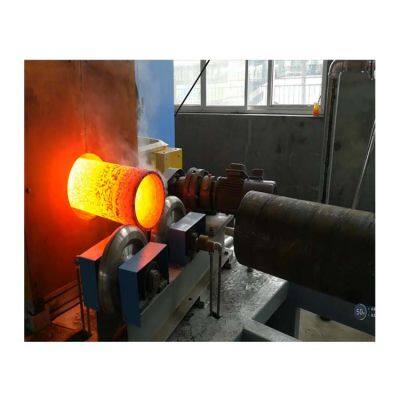

Forever Electromechanical Seamless Steel Tube Quenching and Tempering Furnace has been built with years of experience. quality assurance It is a large manufacturer of induction heating equipment in Jiangbei. The seamless steel pipe quenching and tempering furnace is easy to operate. High production efficiency. Efficient and energy-saving. Durable and long-lasting, Yuantuo Electromechanical's medium frequency induction heating equipment adopts a human-machine interface PLC fully automatic intelligent control program, with high production efficiency
Basic parameters of seamless steel pipe quenching and tempering furnace:
Equipment Name: Seamless Steel Pipe Quenching and Tempering Furnace
Equipment brand: Yuantuo Electromechanical
Equipment process: Automatic tempering after quenching
Workpiece size: pipe diameter greater than 20mm
Workpiece material: carbon steel, alloy steel
Process flow of Yuantuo seamless steel pipe quenching and tempering furnace:
Crane material lifting - storage platform - automatic rotating feeding mechanism - feeding roller - quenching induction heating - infrared temperature measurement - discharging roller - spraying - quenching completion - tempering induction heating - infrared temperature measurement - discharging roller - spraying - automatic unloading mechanism - unloading platform - crane material lifting
Misoperation of seamless steel pipe quenching and tempering furnace:
1. Wrong action. External interference and influence. The load changes dramatically, and the detection circuit is close to the strong circuit, causing interference signals and resulting in changes in the detection current or voltage values. The overcurrent or overvoltage indicator lights up, and the inverter stops.
2. Refuse action. The power supply of the detection circuit has no voltage. For example, detecting damage or open soldering of electronic components in the circuit section. The components of the detection circuit are damaged.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of induction heat treatment furnace in China; Glad to be your business partner in induction heating field.
>>
