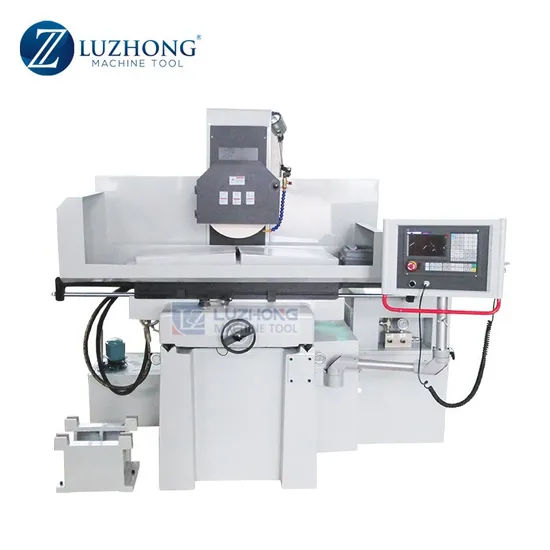

MK1224 Chinese 3 axis CNC control system surface grinding machine

Product Description

MK1224 Chinese manufacture 3 axis control system cnc surface ginding machine
Product Description

Product Parameters

Specifications			Units	MYK1224
workbench	Worktable size (L * W)		mm	600x300
	Max. travel of table		mm	650x320
	Table T slot (slot number x slot width)		mm	1x14
Grinding head	Special grinding wheel size (o. d * w * i. d.)		mm	Ø300×30×Ø76.2
	Distance spindle center line to working table		mm	520
	Grinding wheel speed		r/min	1450
The amount of feed	Table longitudinal (left and right) speed		m/min	3-25
	Table transverse (front and rear) feed handwheel feed		m/min	0.5-15
	Grinding head(up and down)automatic feed		mm	0.005-0.05
	Grinding head up and down is fast lifting speed (approximate value)		m/min	0.6
Hydraulic system	Hydraulic motor		KW	2.2
	working pressure		MPa	4
	Fuel tank capacity		L	100
	Maximum flow rate		L/min	20
Motor power	Spindle motor		kw	3
	Cooling motor		W	90
	Elevator servo motor		kw	1.0
	Front and rear servo motor		kw	1.0
working accuracy	The process surface of the base level of the parallel degree		mm	300:0.005
	Surface roughness		μm	Ra0.32
Machine weight		Net weight	kg	1500
		Gross weight	kg	1600
Suction cup specification			mm	600x300
External size (L * w * h)			mm	2800×1600×1800
Packing size (L * w * h)			mm	2900×1700×2000

Detailed Photos

Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
