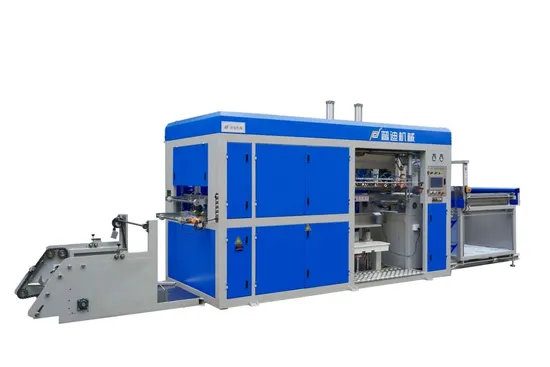

ABS PVC Thermoforming Automatic Plastic Vacuum Forming Machine

Product Description

Product Description
Parameters.
Parameters of PDVF-XS710 Vacuum Forming Machine (Single Electric Furnace)

NO.	Name	Specification
1	Molding method	Vacuum forming
2	Molding size	Forming length:500mm-1220mm Forming width:450mm-710mm
3	Molding depth	≤150mm
4	Material and thickness	PVC,PET,PS,PP etc. 0.15mm-2.0mm
5	Loading system	Motor automatic loading, can load 150KG a roll of material.
6	Heating systems	Heat furnace using energy-saving 600W heating bricks 60 pieces
7	temperature control systems	"AOYI" temperature control module, one-to-one control, fast heating and fast adjustment.
8	pulling systems	3KW Delta servo motor pull tab
9	Molding Systems	The upper and lower molds adopt Taiwan "Delta" 4.5KW servo motor
10	cooling systems	12 meiji automatic spray guns ;four powerful double-head fans
11	control system	MCGS 10-inch color touch screen ; PLC:Taiwan "Delta"
12	Pneumatic Components	Water-oil separator, solenoid valve: Japan "CKD" Two way solenoid valves: Italian ceme
13	electronic component	Contactor: Japan Fuji Relay: Japan Izumi
14	guideway	Light flat water transport guide, hard chrome plated surface, motorized width adjustment
15	vacuum system	a 160m³ vacuum pump of brand Busch; Vacuum storage tank 0.4m³
16	chiller	One 3HP of Taiwan Tengfei
17	memory function	Capable of storing production data for 100 groups of products
18	Silicone oil spraying system	2 additional spray guns front and rear for silicone lubrication
19	Rack Body	100mm*100mm square tube ,Furnace Retrofit Doors
20	Size of the whole machine	Length:7700mm Width:1600mm Height:2500mm
21	power supply	Power: Maximum 50KW Normal production 25KW-35KW Voltage: 380V 50HZ
22	air supply	10HP air compressor, air pressure 6-8bar (self-contained)

Product Description
PD-XS710 Automatic Blister Moulding Machine
Use for below products:
Detailed drawing of the machine
About shipping to loading container
The overview of PD-XS710
A.PD-XS710 vacuum suction servo molding machine, using microcomputer and industrial control programmable PLC control, the whole system HMI (human-machine interface). Using Chinese and English interface (can be customized in other languages), the machine has including button operation and all process parameters set and modify, so that the equipment is easy to operate and maintain.
B. Usage: It is suitable for molding plastic sheets such as HIPS, PS, PP, PVC, APET, PETG, etc. Processing high transparent, high stretch, shallow stretch, round, square, irregular, up and down bi-directional stretching, flanging and other products. Produce all kinds of food packaging, medical packaging, toy packaging, industrial packaging and other packaging products.
C. Machine body: welded or spliced with steel structure profiles, the overall steel structure frame has enough strength and rigidity. All metal surfaces are treated with antirust treatment and bottom sprayed with antirust paint; common and standardized parts are used in the structure, which is convenient for maintenance and replacement of all parts in the later stage.
D. The whole machine is divided into manual/automatic mode, all setup operations are realized on the touch screen; when the operator places the material well, press the automatic startup equipment to complete the whole process of molding technology once, manual is mainly used for mold changing or sample starting control.
Features of PD-XS710
1.This machine is controlled by PLC, and all functions can be operated in touch screen.
2.Pulling piece adopts servo motor control, can adjust different speed or length, faster, accurate, stable, and at the same time with material exit function, to avoid material waste.
3.Mold table lifting is driven by servo motor, can be independently divided into rising and falling, to meet the different heights of products, to the fastest speed production.
4.The electric furnace adopts voltage temperature control, which makes the temperature more moderate and easy to control, and the power consumption is low.
5.Built-in water transportation cooling system with chiller cabinet cooling molding, at the same time with heat insulation board, beam water transportation, more quickly.
6.Equipped with product counting function
7.Production efficiency is about 20s cycle.
8.PLC program has set up 100 groups of memory system, the user can download the parameters of production in the memory file, to be repeated when the production is taken out to use, convenient, time-saving.
9.Product cooling is air-cooled and spray cooling, which can be chosen at will.
10.mold change time is very short, 5-10 minutes.
OUR EXPERTISE ,YOUR ADVANTANGE
1.Professional Technical Team :20 years of R&D and production experience,with rich experience in vacuum moulding technology
2.Non-standard customised service : Provide one-stop service to provide customers with excellent complete vacuum forming solutions .
3.Quality assurance and reliability : All mechanical parts are produced independently by CNC machining centre
4.Worry free after-sales service : Integration of installation ,commissioning and training services
Pudi service standard
Pre-sales service
1. According to the customer's products to provide customers with a reasonable program, plastic absorbing machine and peripheral equipment investment ratio.
2. Provide the amount of water, electricity and gas needed for the production workshop.
3. Provide reasonable workshop planning program.
4.Provide the mold manufacturers and material manufacturers for plastic injection molding.
The sale of services
1. In order to improve the subsequent production efficiency of the customer, the customer's existing molds or re-development of the mold planning proposals.
2. After the completion of the production of equipment, responsible for the installation, commissioning, training. And assist the operator to produce the ideal products.
3. Provide good production suggestions to customers who have just entered the plastic absorbing industry, and reduce customers' production costs.
After-sales service
1. One year warranty for the whole equipment, and the parts can be exchanged for new ones within one year (except for man-made damages and wearing parts).
2. Lifetime maintenance of the equipment, after the warranty period only charge the cost of materials, such as the need for door-to-door service only charge a reasonable travel expenses.
3. For all the customers who have purchased Pudi's equipment, we will make after-sale visits from time to time.
We can customise any model, if you are interested in our machines, please feel free to contact me!

---
