Lightweight Partition Board Machines Precast Concrete EPS Wall Panel Machine Sandwich Panel Machine Sandwich Wall Panel Machine for Block Wall

Product Description

Lightweight Partition Board Machines Precast Concrete EPS Wall Panel Machine Sandwich Panel Machine Sandwich Wall Panel Machine for Block Wall

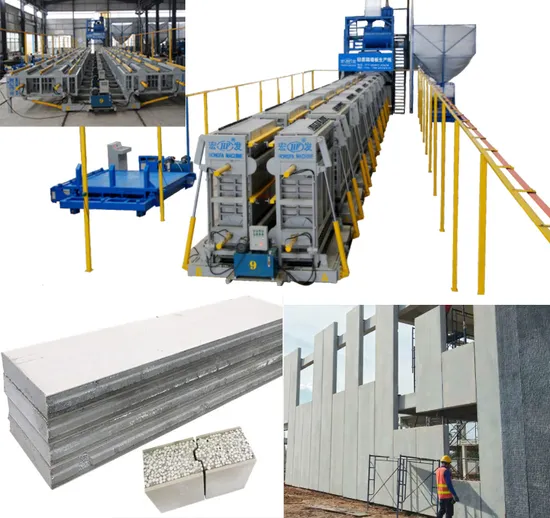

Precast Concrete EPS Wall Panel is a kind of lightweight wall material made of cement, EPS (expanded polystyrene foam), yellow sand as core materials and forming by one time compound. This foam core is sandwiched between two layers of cement material to form a strong insulating board. Concrete Wall Panel Machine
Product Description
The whole lightweight wall panel production line machines parts including these systems.
1) Raw material systems: 100T cement silo + 9M cement screw conveyor +Sand or Perlite storage
2) Metering systems: Weight sand, fly ash, cement, Perlite, etc
3) Mixing systems: JS3600 Mixer + Materials filling system + EPS hopper,Air blower
4) EPS Expanding System:(Optional) EPS Expander + Fluidized bed + Dring blower +EPS delivery blower + Boiler +EPS foam tank,Air pressor + EPS foam delivery pipe
5) Forming systems: Panel Forming Machine + Aluminium moul+ Ferry car + Rail + Slide wire + Moving automatic stacker (for de-molding).
6) PLC contorl system: to contorl the whole production line, one key contorl, easy to operate, less labor cost.
Hongfa offer three types solution for eps wall panel production line:

No.	type	Other productivity	Hongfa productivity
1	Manuel vertical de-moulding type	38pcs	40pcs
2	Automatic verticcal de-molding type	24pcs	30pcs
3	automatic horizontal double layer	36pcs	38pcs

1. Automatic double side opening wall panel machine main data:

Moulding Machine Parameter and Productivity
Overall dimensions(mm)	Power(KW)	Output / Pieces per mould
		60mm	75mm	90mm	100mm	120mm	150mm
3380*3200*2680	4	40pcs	36pcs	32pcs	30pcs	26pcs	22pcs

HFP530A full automatic lightweight concrete sandwich precast wall panel system is Hongfa patent product, for 15 sets molding machine, it's fastest wall board panel production type machine in China, total production line only needs 5 workers, labor density and intensity is low.
1. Full Automatic
2. Eco Saving and Advanced Technology
3. Low cost and high capacity
4. Easy operation
5. Easy maintainence
6. Adopts touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
One Production line of Lightweight Partition Board Machines Precast Concrete EPS Wall Panel Making Machine Sandwich Panel Machinery Can produce kinds of wall panel:
1. with concrete wall panel
2. with calcium silicate board
3. with EPS grain slab
4. with holes hollow concrete panel
5. with Gypsum board without holes wall panel
6. with ceramsite grain concrete wall plate
Hongfa advantages: except for manufacturing machines, HONGFA is the only one company in China market which produce both panels and machines, with more than 7 years panel production experience, we will support you from machine setting to formula and panel installation on site.

Raw materials to make lightweight concrete wall panels :
Ordinary Portland Cement, Lower Alkalinity Sulfur Acid Salt Aluminum Cement, Polystyrene Foam, Sand, Additives or Fly Ash(Coal Boiler), Water, Perlite, etc.
Product Parameters
EPS Forming Machine Main Feasture:
(1)The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
(2) With the same machine, it can adjust the panel size and thickness. The thickness will be from 60 to 250mm.
(3) The closed constant pressure foamng barrel features of high heating efficiency and saves stem.
(4)High precise guiding pressure reducing valve controls the temperature and steam pressure of the closed barrel, ensuring the outcome pressure of the valve constant and the inner temperature controlled wihin ±1%, which keeps the foamed material equal and prevents the bead agglomerate because of the bad temperature control.
(5)With photoelectric or vibration sensor to control material level, ensuring density tolerance within ±3%.
(6)The machine is equipped with fluidized bed dryer, including drying, automatic sieving, depluming and material conveying to silos.
(7)Most components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
(8)The machine can realize the primary and second expansion.


Suggested Staffing Table:

Position	Amount(Person)
Moulding/pouring	1
Demoulding&Packing	1
EPS Expander Operation/raw materials	1
Mixer Operation	1
Transportation	1
Total	5

Hongfa Machinery is your best wall panel machine supplier!
Please do not hesitate to contact us, we will make the factory layout according to your land drawing , will support you from machine setting to formula and panel installation on site. Hope in near future, we can step into win-win cooperation!



Customer EPS Wall Panel cement sandwich panel making machinery machine Plant Succeed Projects:





Packaging & Shipping
Packing: Naked packing or stretch film packing or according to customers' requirementsDelivery time: Within 40 days after receipt of deposit and moulds confirmation from buyer

Company Profile

Hongfa Group Established in 1990.
A leader developer& Manufacturer of Construction Material Machinery with more than 30 years manufacturing experiences.

We are direct machine manufacturer of machines, main business Range & Products:
Lightweight Wall Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Organic fertilizer equipment, hydroelectric power plant, Portland Cement Plant, Sugar cane sugar extraction equipment,Quicklime kiln equipment. Concrete Pipe Machine, Concrete Tile Machine, Concrete pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery, Concrete Batching plant, Stereo Parking Equipment,etc

More than 30 years experience with 1500 employee (50+engineers)
Total 4 factories with 440,000M2 and annual sell above USD100 Million .
10,000 customers and fulfillment to over 120 countries.
Continuous service and logistics system.
High quality products and competitive price.We hope we can cooperate with each other and establish a win win business relationship.






Hongfa Heavy Machinery, as a top brand enterprise in China, our products are also exported to Russia, Brazil, Thailand, Indonesia, Vietnam, Angola, Bangladesh, India, Australia, Sudan, etc., 96 countries and regions, deeply welcomed by clients from all around the world.




After Sales Service

Pre-sale service
We are dedicated to the quality manufacturing of wall panel making machines, providing not only complete sets of wall panel production machines but also complementary services.
Offer you a complete precast concrete wall panel production solution. Analyzing:Plant size, budget, automatic degree, local condition....analyzing all of your requirements , we are glad to add value to help you find best way make your ideal panels.


After-sales service
Long life after sales consulting and support.
5 years after sales guarantee, 1 set of free spare parts available, free installation, free labor training, free formula testing and lifespan technical maintenance guidance.





FAQ
Q: What is the MOQ?A: 1 set for testing the operating.
Q: Can I mix different designs?A: Sure!
Q: Can I get a lower price if I order large quantities?A: Yes, cheaper prices with more bigger size orders.
Q: Can I add or delete items from my order if I change my mind?A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change
Q: When you ship my order?A: Normally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the quality guarantee period?A: 5 years.
Q: How can you guarantee the production quality?A: Our production quality follow China construction machinery standard JGJ33-2012. We have 29 years experience on producing the machines and will be inspected by QC team for ach shipment. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection acceptable.






Welcome to contact me.
Any inquiry would get our professional and prompt reply!
Conctact Person: Mrs. Emma Lu Hongfa Group since 1990Guangxi Hongfa Heavy Machinery Co., Ltd.Website: https://hongfamachine888.en.made-in-china.comFactory add.: Yilingyan Industrial Zone, Nanning city, Guangxi province, China
