2024 Hybrid 5in1 Xvr DVR Recorder for Ahd Tvi Cvi IP Cameras Indoor Grand Stage/Architecture/Engineering/Cinema CCTV Security

Product Description

Product Description

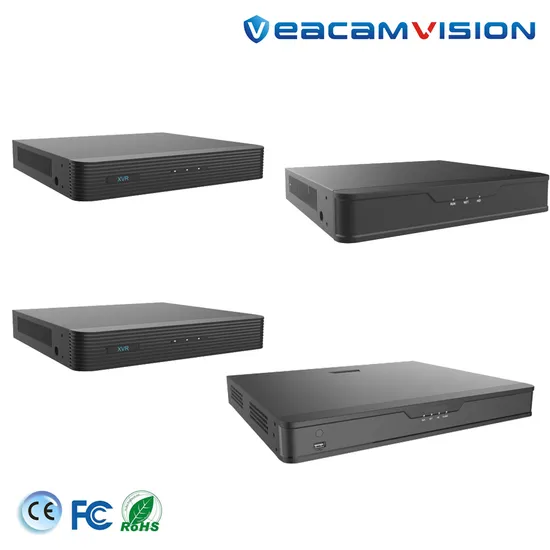

8MN 4CH XVR Onvif CCTV DVR Hybrid Recorder The 8MN 4CH XVR Onvif CCTV DVR Hybrid Recorder is a versatile and high-quality recording device that is compatible with various camera types. It supports H.265 and H.264 video formats, ensuring excellent video quality. With its support for audio over coaxial cable, you can capture clear audio along with the video footage.
This hybrid recorder is designed to work seamlessly with TVI, AHD, CVI, CVBS, and IP cameras, allowing for adaptive access. It features a 4-channel BNC input, providing you with multiple camera options. The recorder also offers a 1-ch HDMI output and a 1-ch VGA output at up to 1920*1080 resolution, ensuring crisp and clear video playback.
One of the standout features of this recorder is its long transmission distance over coaxial cable. This means you can install your cameras at a distance from the recorder without compromising on video quality.
Experience the convenience and reliability of the 8MN 4CH XVR Onvif CCTV DVR Hybrid Recorder for all your surveillance needs.
Product Parameters

Model	VCXVR-804UA1S
Video/Audio Input
Analog Video Input	4-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 4K
Supported Analog Camera Types	Support AHD input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@30fps(channel1) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@20fps (channel1) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Two-way Audio	1-ch, RCA
Network
Incoming Bandwidth	48Mbps
Outgoing Bandwidth	60Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output	1-ch, BNC
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Synchronous Playback	4-ch
Encoding
Recording Resolution	8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Recording Frame Rate	Main stream: 8MP Lite@8fps(channel1) 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max)
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Serial Interface	1 x RS485
General
Power Supply	12V DC Power Consumption: ≤ 8 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm ×240mm× 46mm (10.2" × 9.4"×1.8")
Weight ( without HDD )	≤1.1 Kg ( 4.19lb )
