Factory Price 0.9mm LC Pigtail Singlemode Fiber Optic Pigtail 1m White

Product Description

Product Description

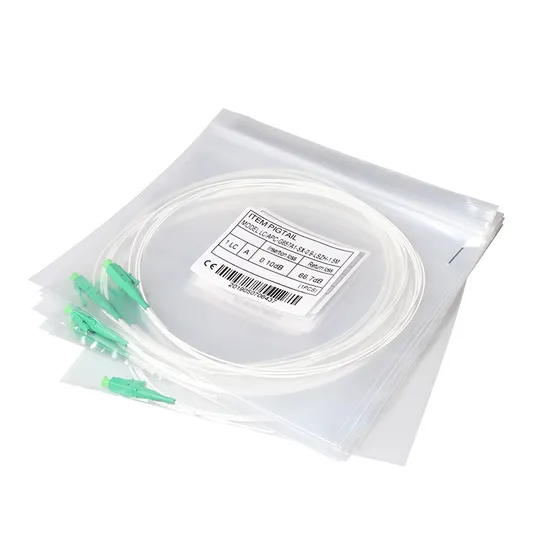

LC 0.9mm G657A1 SX SM LSZH Pigtail Singlemode Fiber Optic Pigtail 1M fiber pigtail white
Description
Optical Fiber Pigtail can provide a quick and easy termination of fibers in the field.Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.Our quick connector system removes any requirements for epoxy,adhesives or costly curing ovens.All the key steps have been done in the factory to ensure every connection is excellent.
Feature
1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules
Application
1.Access Network
2.Telecom/CATV Systems
3.Active device termination
4.Local Area Networks (LANs)
5.Metro
6.Test equipment
7.Data processing networks
8.Wide Area networks (WANs)
9.FTTX
Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.25dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥50dB(PC/UPC) ≥60dB(APC)	≥40dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.

Quality Control System

Company Profile
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

---
