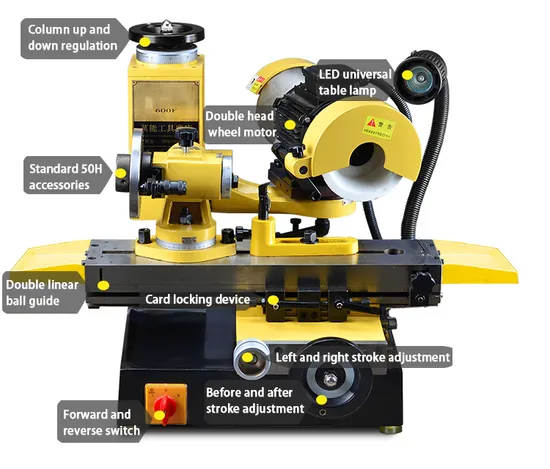

Universal Cutter Tool or Drill Bit Grinding Machine (PP-600F)

Product Description

1,The working table uses two high precision straight line roiling guide rails,good back and forth movement, high stability, steady bed platform, dexterous operation.
2,Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.

Product Parameters

1,About worktable Diameter: 300mm
2,About worktable travelin schedule: 150mm
3,Worktable area: 130×520mm
4,Rotating Angle of Wheel head: 360°
5,Grinding wheel size: 150×50×32mm
6,Power/Speed: 2800 RPM
7,Motor: 3/4HP 220V/380V
8,Dimension: 700×630×630mm
9,Weight: 175kg/160kg
10,Standard Equipment: 50C,50H can grind slot miller,face and side cutter,lathe tool ,hobbing cutter,reamer bit etc.
11,Option Equipment:
★50E grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter.
★50K can grind drill bit ,screw tap,side mill,round bar and so on.
★50J thimble
PACKAGE :PALLET

---
